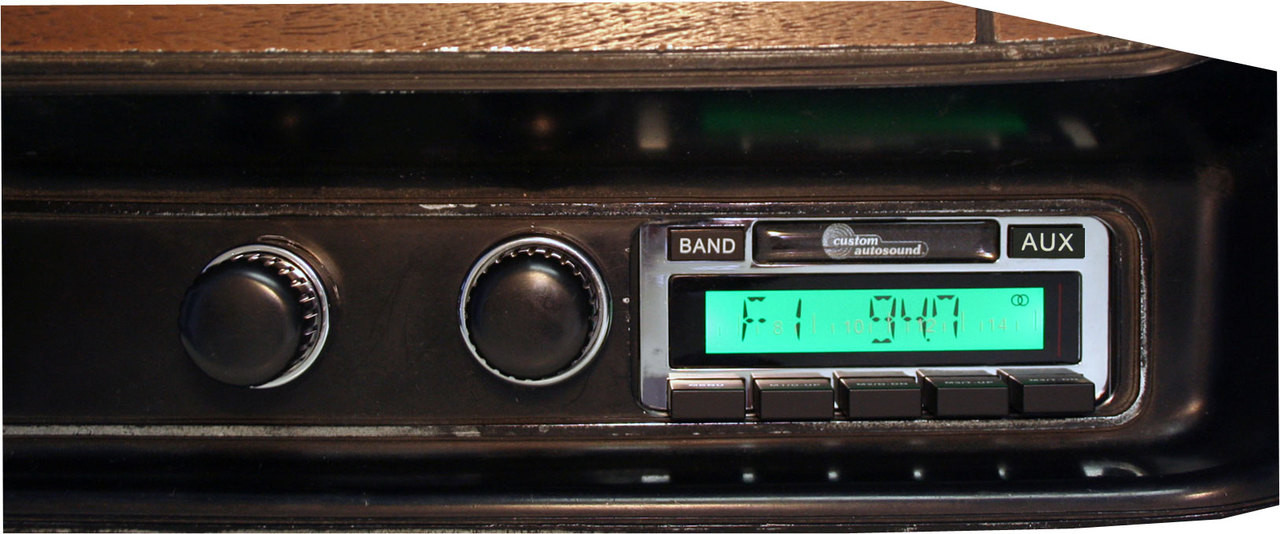

Custom Autosound 1970-74 Barracuda USA-230 In Dash AM/FM
The Custom Autosound USA-230 is the value-minded in-dash radio for 1970-74 Barracuda owners who want AM/FM stereo and a rear auxiliary input without the full USA-630/740 feature set. It still targets the classic dash opening so you are not cutting for a modern DIN chassis, and it remains a sensible starting point when the budget prioritizes the radio face first.
Fitment note: Mopar applications often need a dimensions check. If your Barracuda dash does not match the expected opening, call 844-802-4499—a Secretaudio hideaway unit may be the better product. Vintage Car Radio does not offer installation; we help you choose the right catalog product.
What you get
AM/FM stereo, electronic controls, auxiliary input, and four-channel output sized for a classic Barracuda. Compare this page with the USA-630 and USA-740 listings for the same years if you decide you want USB, optional Bluetooth, or built-in Bluetooth before you order.
Simpler AM/FM for E-body Barracuda
The USA-230 remains the entry Custom Autosound in-dash radio for 1970–1974 Barracuda and Cuda owners who want stereo and aux without the full 630/740 feature stack. Compare sibling pages when USB or Bluetooth moves up the list.
Expanded from the prior 1970-only listing
This product updates the older 1970-only Barracuda USA-230 page into a 1970–1974 band so the title, URL, and search keywords match how owners describe the car.
Custom Autosound USA-230 features:
- AM/FM stereo with rear auxiliary input
- Designed for the original dash opening (confirm fitment)
- Four-channel speaker power
- Classic face for the listed years
- Backed by a 2-year manufacturer warranty from Custom Autosound
Frequently Asked Questions About the 1970-74 Barracuda USA-230
Is this radio made for the 1970-74 Barracuda?
This listing is the year-banded Custom Autosound USA-230 application for the 1970-74 Plymouth Barracuda. Confirm your dash opening matches; call 844-802-4499 if you need a dimensions check.
Do you install the radio?
No. Vintage Car Radio sells the product only and does not offer installation services. We can help you choose the right radio and accessories over the phone.
What warranty applies?
Custom Autosound radios are backed by a 2-year manufacturer warranty. Keep your order details for support questions.
Why ask about factory air, voltage, and ground?
Those options help us send the correct setup for your Barracuda. Select the answers that match the car sitting in your garage.
Should I buy the USA-630 or USA-740 instead?
If you want USB and optional Bluetooth, compare the USA-630. If you want built-in Bluetooth, compare the USA-740 for the same 1970-74 Barracuda.
Owners of 1970-74 Plymouth Barracuda cars who are comparing Custom Autosound USA-230, USA-630, and USA-740 feature sets can use this page as the USA-230 anchor for that year band. Keep browsing related Mopar radios on the site, then call 844-802-4499 if you want a second opinion on whether an in-dash USA radio or a Secretaudio hideaway unit fits your restoration goals better. Ordering the correct year-banded SKU up front avoids returns and keeps the project moving when the rest of the interior is already underway.
From a shopping perspective, year-banded Barracuda radio pages also support later stereo packages that group a radio with speakers under one parent SKU. This stand-alone USA-230 listing stays live whether you buy only the radio today or come back for a package once speaker choices are settled. Either path uses the same Custom Autosound hardware Vintage Car Radio already stocks and supports.
USA-230 specifications
- 200 watts peak power (50W x 4)
- AM/FM stereo tuner
- RCA auxiliary input
- 12 FM and 4 AM presets
- Electronic tuning and volume
- 4-channel RCA pre-outs for an external amplifier
- Separate bass and treble controls
- 4-way fader and left/right balance
- Power antenna lead
- Designed for original classic dash openings (no DIN cut required for vehicle-specific faceplates)
- Custom Autosound 2-year manufacturer warranty
USA-230 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-230 extras
Use the rear RCA AUX for a wired player. Pre-outs support adding an amplifier later without replacing the radio.
Suggested order for a 1970-74 Barracuda
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1970-74 Barracuda
- This radio is sold for the factory Barracuda opening used in 1970-74 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-230 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1970-74 Barracuda USA-230
Will this fit my 1970-74 Barracuda without cutting the dash?
It is built for the original radio opening used on 1970-74 Barracuda models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-230 is a wired/AUX-focused radio without built-in Bluetooth. Consider a USA-740 or USA-850 if you want Bluetooth built in.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
