Product Description

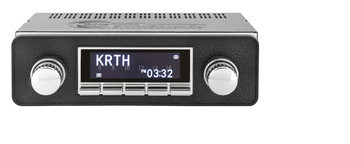

Custom Autosound 1970-72 USA-850 for Chevy Monte Carlo
The USA-850 DigaDial™ virtual screen radio allows the user a choice of 4 distinct and one-of-a-kind displays.
Choose the classic 60’s analog setting and watch as the red needle glides across the dial to tune to your favorite AM/FM radio stations. Or choose the all-digital RDS display with station, song and artist information. Select different color options to match your instrument clusters. Each DigaDial™ display option gives clear, concise and attractive feedback, enriching your radio experience.
The USA-850 now offers improved audio refinements such as 6-volt RCA pre-out and dual subwoofer outputs for stellar audio when adding external amplifiers. Rattle your windows with the pounding sound from your amplified speakers and subs. Adjust the audio control functions for Bass, Treble and Midrange or select the DSP EQ setting (Flat, Classic, Pop, Rock). Multiple audio sources give you greater listening preferences. Stream music and answer calls via Bluetooth. Listen to MP3, WMA or FLAC files from a flash drive via the USB port that will also charge your phone. Add our CD-1 single Cd player. Or listen to any portable audio device via the rear RCA Input.
Like all Custom Autosound radios, the USA-850 will fit over 450 different classic vehicle applications without having to alter or cut the original dash or radio opening. The simple 3-wire power harness and clearly labeled speaker wire harness insures ease of installation. Whatever road or highway you take, be sure to make it sound better and look cooler than you remember with any of our Custom Autosound radios and speakers for your vintage or classic vehicle.
Common Questions About the 1970-72 USA-850 for Chevy Monte Carlo
Do I need to modify the 1970-72 Chevy Monte Carlo dash to install it?
This version is built for the 1970-72 Chevy Monte Carlo and is made to fit the factory radio opening. Custom Autosound says its radios fit without altering or cutting the original dash.
What can I add to my 1970-72 USA-850 for Chevy Monte Carlo order?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), and an antenna (Hideaway Antenna and Power Antenna) right from the options above.
Does it matter if my 1970-72 Chevy Monte Carlo has factory air?
Select Yes or No under Factory Air so we send the correct setup for your 1970-72 Chevy Monte Carlo's dash.
Will it work with a 6-volt system?
Choose your system under Voltage (12 Volt and 6 Volt) and Ground (Negative and Positive) when you order.
What features does the USA-850 have?
Custom Autosound rates it at 75 watts x 4 peak (300 watts max), with 6-volt RCA pre-outs and dual subwoofer pre-outs. You can adjust bass, treble and midrange or choose a DSP EQ preset (Flat, Classic, Pop or Rock).
What else should I know about the USA-850?
The DigaDial display gives you 4 screen choices, including a classic analog dial with a red needle that glides across the stations, or an all-digital RDS display. It streams music and takes calls over Bluetooth.
USA-850 specifications
- DigaDial selectable display (including working analog-style dial and digital RDS views)
- Bluetooth built in (streaming and hands-free calling)
- 300 watts peak power (75W x 4 peak)
- AM/FM stereo tuner with RDS
- 25 presets
- USB port for MP3/WMA/FLAC/WAV playback and phone charging
- Rear RCA auxiliary input
- Direct control for optional CD-1
- 6-volt RCA pre-outs plus dual subwoofer pre-outs
- Bass, midrange, and treble; DSP EQ (Flat, Classic, Pop, Rock)
- Front/rear fader and left/right balance; loudness
- Power antenna lead; digital clock
- 12V negative-ground; 2–8 ohm speakers
- Designed for original classic dash openings (vehicle-specific faceplate)
- Custom Autosound 2-year manufacturer warranty
USA-850 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-850 extras
Expect antenna, USB (playback and phone charge), Bluetooth microphone, optional CD-1 control, 6V front/rear RCA pre-outs, and dual subwoofer pre-outs. Use the rear RCA AUX for a wired player. Pick your DigaDial display style in the radio menu after power-up.
Suggested order for a 1970-1972 Chevy Monte Carlo
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1970-1972 Chevy Monte Carlo
- This radio is sold for the factory Chevy Monte Carlo opening used in 1970-1972 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-850 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1970-1972 Chevy Monte Carlo USA-850
Will this fit my 1970-1972 Chevy Monte Carlo without cutting the dash?
It is built for the original radio opening used on 1970-1972 Chevy Monte Carlo models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
Yes—Bluetooth is built into the USA-850 for streaming and hands-free calling. The DigaDial display also offers selectable classic dial and digital views.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
