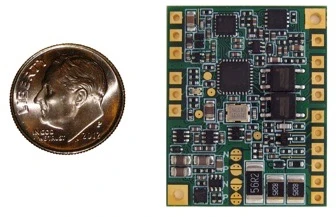

Aurora Design FMC-2 FM Tuner: Add FM and Auxiliary Input to Your Original AM Radio
The FMC-2 is Aurora Design's FM conversion board for original AM car radios and the follow-on to the popular FMC-1. Rather than replacing the radio's electronics, the FMC-2 adds FM reception and an auxiliary input for MP3 players, satellite radio and similar devices, and it can be removed later without a trace. This listing was previously titled FMC-3.2, but Aurora Design sells this tuner as the FMC-2.
Improvements Over the FMC-1
- Double the processing power
- Selectable auxiliary input trigger: VOX, tune to the low end of the dial, or power-switch cycling
- Elimination of false power-cycle trips
- Twice the output voltage for compatibility with early tube radios
- Lower antenna shunt capacitance
Preserves Originality and Value
The FMC-2 measures only 1.0" x 1.25" x 0.15", small enough to mount entirely in the head of a 1953-1959 Ford F100 radio. Only one wire inside the radio, the antenna lead, needs to be cut, and all other connections are simply tacked in place. Original wiring stays intact, and no changes to the vehicle are required. Because it can be removed later, the originality and value of your AM radio are preserved. Aurora Design says it can also replace a failed FM front end in an original 1960s factory AM/FM radio.
One Board for Every Installation
The FMC-2 is fully self-contained, with no external power supply or extra components. The same board works on 6-volt or 12-volt systems with selectable positive or negative ground, so vintage owners don't have to hunt for a special version. It supports worldwide FM with 200 or 100kHz channel spacing and 75 or 50µs de-emphasis, plus the Japanese FM band of 76.0-95.0 MHz.
Feels Like an Original FM Radio
Advanced digital electronics and software recreate the feel of an original analog automotive FM radio. The quartz-locked design gives extremely stable tuning, and the microprocessor adjusts its settings 1,333 times per second. Settings are kept in nonvolatile memory, so no constant battery lead is needed. In FM or AUX mode, the FMC-2 disables the AM section for zero cross-interference, and its power detection prevents false mode switching.
Signal-Seeking Radio Support
Wonderbar® and Town & Country signal-seeking radios are fully supported, including selectable sensitivity and Delco® electric pushbutton tuning. Seek tracking runs as fast as 30ms per channel.
Key Specifications
- FM range: 87.5-108 MHz worldwide, 76.0-95.0 MHz Japan
- Audio output adjustable from 333mVpp to 10.6Vpp
- 6V operation: 4.5-9.0V DC; 12V operation: 9.0-18.0V DC
- Operating temperature: -25°C to +65°C
- Package: FMC-2 board and downloadable QuickStart Guide
To add Bluetooth to an FMC-2 installation, see the BTC Smart-3.2, which works standalone with the FMC-2. Sold and shipped by Vintage Car Radio. Contact our team with your radio's details before ordering.
Stereo Conversion FMC-2 FM Tuner: Your Questions Answered
What is this tuner for?
The Stereo Conversion FMC-2 FM Tuner is part of Aurora Design's modular radio system. Use it with the matching Aurora receiver and adapters for your car.
Where are Aurora Design products built?
Aurora Design products are designed to SAE specifications and built in the USA in an ISO 9001 facility.
What else is worth knowing?
Aurora Design FMC-2 FM Tuner: Add FM and Auxiliary Input to Your Original AM Radio The FMC-2 is Aurora Design's FM conversion board for original AM car radios and the follow-on to the popular FMC-1.
Who is this made for?
Rather than replacing the radio's electronics, the FMC-2 adds FM reception and an auxiliary input for MP3 players, satellite radio and similar devices, and it can be removed later without a trace.
How is the Stereo Conversion FMC-2 FM Tuner meant to be used?
This listing was previously titled FMC-3.2, but Aurora Design sells this tuner as the FMC-2.
What stands out about the Stereo Conversion FMC-2 FM Tuner?
Only one wire inside the radio, the antenna lead, needs to be cut, and all other connections are simply tacked in place.
Call-in install only — not sold as a ship-to-you part.
These Aurora Design units are installed here at Vintage Car Radio. Send your radio to us and we install the board or adapter in your unit. This listing is for information only: prices are not shown online, and you cannot add it to the cart.
To arrange an install, call us at 574-226-6676 or email sales@vintagecarradio.com.
Stereo Conversion FMC-2 FM Tuner specifications
- Aurora Designs product as titled
- See the product overview above for features, fitment, and included parts
- 12V negative-ground automotive use unless the overview states otherwise
Wiring / Tech Tips — Stereo Conversion FMC-2 FM Tuner
- Disconnect the battery negative before installing.
- Confirm fitment (year/model, dash opening, polarity) against the title and overview.
- Follow the manufacturer wiring diagram packed with the unit; use a fused 12V switched lead and a solid chassis ground.
- Connect speakers per the diagram; do not ground speaker leads.
- Test all functions before reassembling the dash.
Vintage Car Radio does not offer installation.
Stereo Conversion FMC-2 FM Tuner manuals
- Instructions packed with the unit
- Manufacturer documentation: aurora-designs.com
Warranty
Covered by the Aurora Designs manufacturer warranty as published by aurora-designs.com. For warranty or service questions, contact Vintage Car Radio at 844-802-4499 / 574-226-6676.
FAQ — Stereo Conversion FMC-2 FM Tuner
Will this fit my vehicle?
Match the title and overview; call 844-802-4499 if unsure.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676.
