Product Description

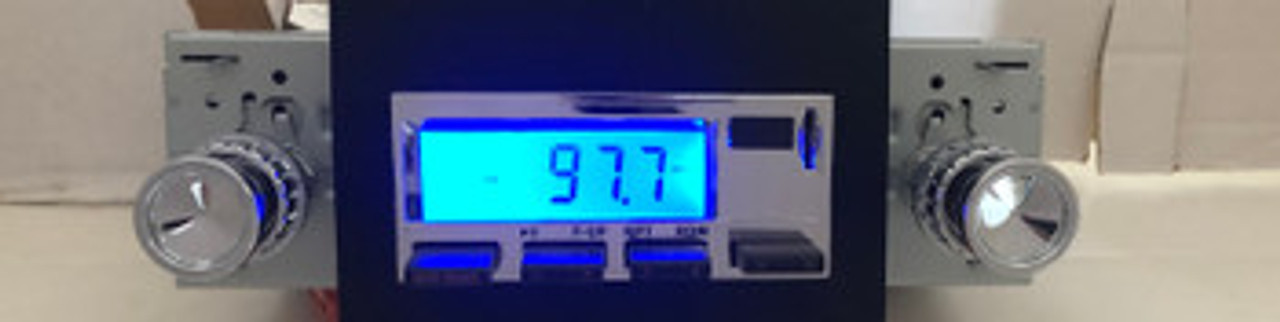

The classic Toyota Celica is dependable, reliable and fun. This KHE-300-USB with Bluetooth by Ken Harrison is the Celica version, adding Bluetooth, USB and SD card playback to a radio with a period look.
Fit and Ordering
Our listing identifies this KHE-300 as the Toyota Celica version. Contact us with your year before ordering to confirm fit.
Why This Model
The KHE-300 pairs old-school controls with new-school sources. Press a pushbutton for a favorite station, stream from your phone over Bluetooth, or load music onto a USB stick or mini SD card.
The Right Fit Matters
Vehicle-specific radios are designed around the dash they go into, so the controls line up and the face sits where the original did. That makes installation simpler and the finished result looks like it came from the factory.
Features
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner
- 6 AM and 6 FM presets on extended pushbuttons
- Manual up/down tuning, seek and auto scan
- Separate bass and treble controls and a 4-way fader
- LCD display with blue illumination and clock
- Auto antenna power lead, RCA pre-outs and rear auxiliary input
- 200 watts of output (50 watts x 4)
- Bluetooth wireless audio streaming
Build the System
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Hideaway antenna
Everything the Celica Needs
Use the PLL tuner for local stations, then switch to Bluetooth, USB or SD card for your own music. The blue LCD shows the time and frequency and is easy to read at night.
Choosing Add-Ons
If you are not sure which speakers or antenna to choose, tell us about your vehicle and how you use it. A car that is mostly cruised around town needs a different setup than one driven long distances, and we are happy to help you match the parts.
Electrical and Installation
Like other modern radios, the KHE-300 runs on 12-volt negative ground. Contact us if your vehicle has a 6-volt or positive ground system.
Most installs go smoothly when the wiring is in good shape. Inspect it first, add a fuse to the power lead and test the radio on the bench before mounting it. An auto radio specialist can install it for you if needed. Vintage Car Radio sells the radio and accessories but does not offer installation.
Using the Presets
The six AM and six FM presets sit on extended pushbuttons that are easy to find by feel. Tune to a station, then press and hold a button to store it. Seek and auto scan help when you are traveling.
KHE-300-USB with Bluetooth for Toyota Celica FAQ
Will it fit my Toyota Celica?
This is the Toyota Celica version. Contact us with your year to confirm fit.
Does it have Bluetooth?
Yes, for streaming music from your phone.
How many presets are there?
6 AM and 6 FM on extended pushbuttons.
How much power does it have?
200 watts (50 watts x 4).
Can I add a hideaway antenna?
Yes. It is offered on this page.
KHE-300 specifications
- Ken Harrison KHE-300 vehicle-specific classic car radio (fitment per listing title)
- Bluetooth wireless audio streaming (music streaming; not all listings advertise hands-free calling)
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner with automatic mono/stereo
- 6 AM and 6 FM presets; preset scan and auto store
- Manual up/down tuning, seek and auto scan
- Separate bass and treble; front/rear fader; left/right balance
- LCD display with blue illumination and clock
- Auto antenna power lead; RCA pre-outs; rear auxiliary input
- 200 watts system power (50 watts × 4 channels)
- 12 V negative-ground (6 V / positive-ground cars need a converter)
KHE-300 wiring and tech tips
Ken Harrison manuals recommend installation by an auto radio specialist if you are not comfortable with 12 V work.
- Confirm the vehicle is 12 V negative ground before connecting (use a converter for 6 V or positive-ground cars).
- Disconnect a battery terminal before wiring.
- Use a fused power source and a clean chassis ground.
- Bench-test the radio before final mounting when practical.
- Connect the antenna lead and the auto-antenna power wire only if your antenna is compatible.
- Match speaker polarity; do not short speaker leads to ground.
Application: classic Toyota Celica (confirm fitment from the product title before install). Vintage Car Radio does not offer installation.
KHE-300 manuals
Use the Ken Harrison owner’s sheet packed with the radio for the official wiring diagram and controls. Additional classic-radio manuals are listed on our Manuals page when available.
Vintage Car Radio does not offer installation.
Warranty
Warranty coverage for Ken Harrison radios is handled per the manufacturer’s and seller’s published terms for your purchase. Contact Vintage Car Radio at 844-802-4499 or 574-226-6676 with your order number for assistance.
Vintage Car Radio does not offer installation.
FAQ — classic Toyota Celica KHE-300
Will this fit my dash?
Ken Harrison radios are vehicle-specific. This listing is for classic Toyota Celica as titled—compare your opening and faceplate to the photos.
Does Bluetooth include hands-free calling?
KHE-300 listings emphasize wireless audio streaming. Confirm calling support on the product page for your exact SKU.
Do you install?
No.
Need help?
844-802-4499 or 574-226-6676.
