Product Description

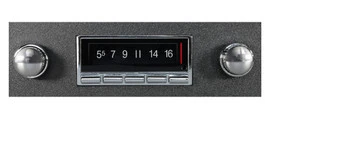

Cadillacs from 1947 to 1984 cover everything from postwar Series 62 cars to the downsized DeVilles of the eighties. This Custom Autosound USA-740 is listed for 1947-84 Cadillacs, with built-in Bluetooth, USB, an RDS tuner and 300 watts peak behind a classic face.
Features
- Built-in Bluetooth for streaming music and hands-free calls
- USB input for music files on a flash drive
- AM/FM RDS tuner with 25 presets (15 FM and 10 AM)
- 300 watts peak
- Seven LCD color choices
- Bass, mid and treble controls, loudness and DSP EQ
- 4-channel RCA pre-outs plus a subwoofer output
- Direct control of the optional CD-1 player
- Digital clock and power antenna lead
Ordering
The order form asks for Year, Make and Model, Factory Air, Voltage and Ground, so we send the right version for your Cadillac. You can also add:
- CD Player: add a CD player that works with the radio
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Antenna: hideaway antenna or power antenna
Many Years, One Check
Cadillac dashes changed many times over these years. Contact us with your year and model before ordering so we can confirm the right version.
Radio Data System
The RDS tuner shows station names and, where broadcast, song and artist on the display.
Electrical Requirements
Custom Autosound radios need 12-volt negative ground. Early postwar Cadillacs used 6-volt systems; Custom Autosound's NGVB-HC voltage booster covers 6-volt negative ground and the PGPI-HC inverter covers positive ground.
Installation
The USA-740 is made to fit the factory radio opening. Disconnect the battery, check the wiring and test before reassembling the dash.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
Choosing Speakers
Many classics have one dash speaker. A dual voice coil speaker carries both stereo channels from that location, and a rear 6x9 pair, Custom Autosound or upgraded Pioneer, fills in the back.
Fit Questions
Dashes changed often, even within a model line. If you are unsure which version you need, have your year, model and any dash changes ready when you contact us.
Amplifier Ready
The 4-channel RCA pre-outs make it easy to add an amplifier for more power or a subwoofer for deeper bass, without replacing the radio.
Everyday Use
Presets, seek and a clear display make the radio easy to live with, and the auxiliary input means your phone's music, podcasts and navigation prompts can come through the car's speakers.
Display Colors
Seven LCD color choices let you match the display to your Cadillac's instrument lighting.
Hands-Free Calling
The built-in Bluetooth handles hands-free calls, so you can keep your eyes on the road.
Custom Autosound USA-740 for 1947-84 Cadillac FAQ
Will it fit my Cadillac?
Contact us with your year and model to confirm fit.
Does it have Bluetooth?
Yes, built in, for streaming and calls.
How many presets?
25: 15 FM and 10 AM.
Can I add a CD player?
Yes. A single slave CD player is offered.
What is the warranty?
2 years from Custom Autosound.
USA-740 specifications
- Bluetooth built in (streaming and hands-free calling)
- 300 watts peak power (45W x 4 RMS, 2-ohm stable)
- AM/FM stereo tuner
- 2 AUX inputs (3.5 mm front and RCA rear)
- USB port
- Direct control for optional CD-1
- 5-channel RCA pre-outs including subwoofer pre-out and control
- 15 FM and 10 AM presets
- 7-color LCD with dimmer; RDS station/song/artist display
- DSP EQ; auto-store presets
- Electronic tuning and volume; separate bass/treble; 4-way fader; L/R balance
- Power antenna lead; digital clock
- USA/EUR/JAP/RUS tuner capability (USA default)
- Custom Autosound 2-year manufacturer warranty
USA-740 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-740 extras
Expect antenna, USB, microphone (Bluetooth), CD-1, and subwoofer RCA connections in addition to front/rear line outs. Use the front 3.5 mm AUX or rear RCA AUX for wired sources.
Suggested order for a 1947-1984 Cadillac
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1947-1984 Cadillac
- This radio is sold for the factory Cadillac opening used in 1947-1984 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-740 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1947-1984 Cadillac USA-740
Will this fit my 1947-1984 Cadillac without cutting the dash?
It is built for the original radio opening used on 1947-1984 Cadillac models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
Yes—Bluetooth is built into the USA-740 for streaming and hands-free calling.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
