Product Description

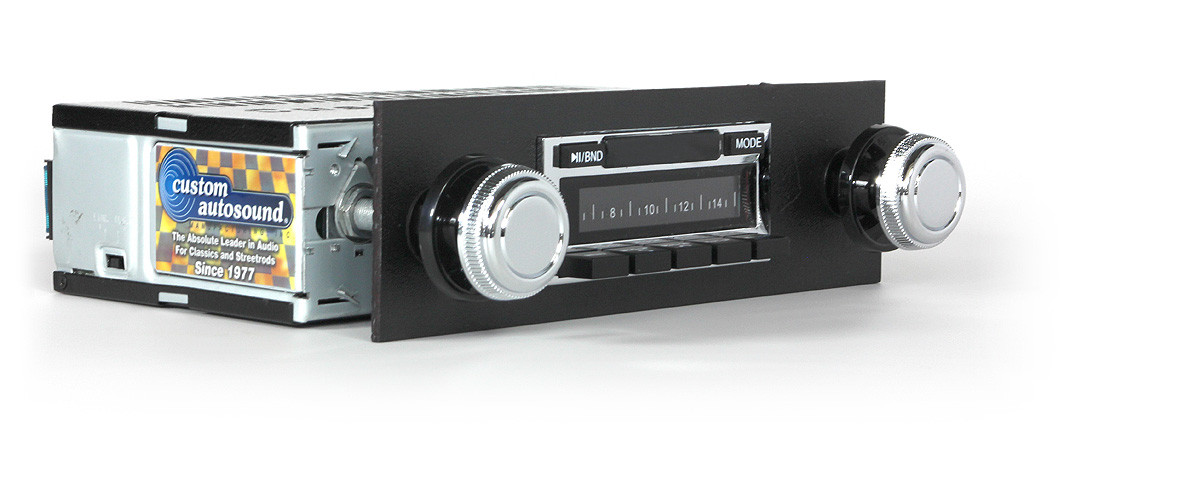

Custom Autosound USA-630 for Edsel
If you want a high-quality sound system for your classic Edsel, the Custom Autosound USA-630 from Vintage Car Radio is exactly what you're looking for. It provides years of listening enjoyment, and Custom Autosound is known for top-of-the-line classic car products. Call us at 574-226-6676 to confirm fit for your year.
The USA-630 has many special features, including:
1. AM/FM stereo with 16 presets (12 FM, 4 AM)
2. Volume control and electronic tuning, with separate treble and bass
3. Left/right balance and a USA/Euro tuner
4. 4-way fader and loudness compensation
5. 2-channel RCA auxiliary input and digital EQ
There's nothing like driving down a country road with the radio turned up, and with 300 watts peak, the USA-630 delivers a great driving experience. If you love modern technology, you'll enjoy the USB port for WMA/MP3 files, with iPod, WMA and MP3 file details shown in alphanumeric text, plus iPod control buttons and an iPod dock. For old-school listeners, the USA-630 also directly controls an optional 6-disc CD changer.
The white-on-black negative display is easy to read, day or night, and the RDS tuner shows artists, songs and stations on the LCD screen, so you always know what's playing. A built-in, always-on digital clock helps you stay on time, and a power antenna lead helps with reception on your next road trip.
| Features
|
For more information about the USA-630 for classic Edsel vehicles, visit www.vintagecarradio.com
Frequently Asked Questions About the USA-630 for Edsel In Dash AM/FM
Will it fit my Edsel without cutting the dash?
This listing is the version made for the Edsel, designed to go into the original dash opening. Custom Autosound says its radios fit without altering or cutting the original dash.
How does the USA-630 handle phone audio and connections?
The RDS tuner shows station, song and artist information, and you get 16 presets (12 FM, 4 AM). A USB port plays MP3 and WMA files from a flash drive, and the display shows artist and song titles.
Can I buy speakers and an antenna at the same time?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna) right from the options above.
Will it work with a 6-volt system?
The order form has Voltage (12 volt and 6 volt) and Ground (Negative and Positive) options, so set them to match your Edsel.
Why does the order ask about factory air?
Select Yes or No under Factory Air so we send the correct setup for your Edsel's dash.
Will it keep the stock look of my Edsel dash?
Yes. It's built to keep the original look in the Edsel dash while adding modern features.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Edsel
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Edsel
- This radio is sold for the factory Edsel opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Edsel USA-630
Will this fit my classic Edsel without cutting the dash?
It is built for the original radio opening used on classic Edsel models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
