Product Description

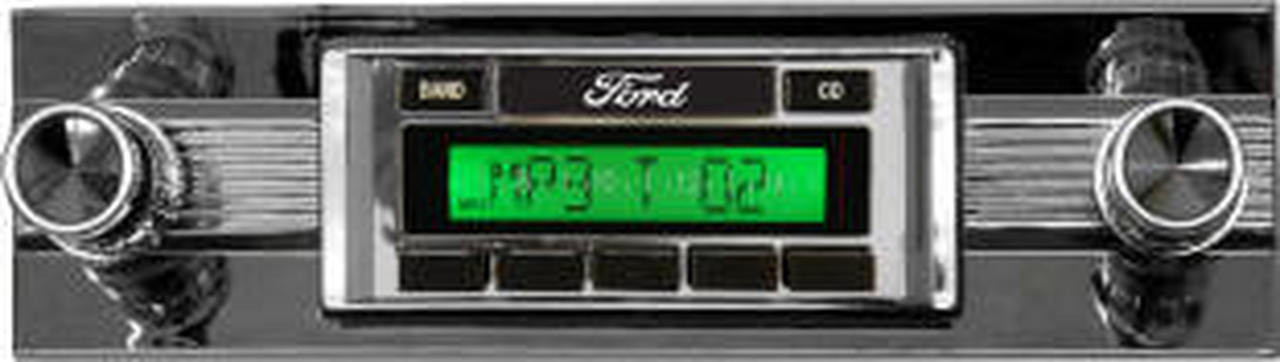

Custom Autosound USA-630 for Ford Fairlane
When new computer parts come out, you might be first in line to upgrade. You don't like running on outdated parts.
The same goes for your classic Ford Fairlane. Its radio was once top of the line, but there's no need to live with an outdated radio. Upgrade to the classy USA-630 and give your car's audio new life. Call us at 574-226-6676 to confirm fit for your year.
The Upgrade Has Great Features
Look at the USA-630 and you'll see why it's worth the upgrade. A power antenna lead helps bring in your 25 presets (15 FM, 10 AM). When you want something other than the radio, you can play up to 6 CDs through an optional changer, your WMA or MP3 files, or your iPod.
You also get an RDS tuner, a digital EQ, treble and bass controls, and volume and balance to make your sound second to none. The display shows song titles, artists and more in your choice of 7 colors, so a glance tells you what's playing.
The 4-way fader, 4-channel RCA pre-outs and 2-channel RCA aux input make sure your fine-tuning isn't wasted. There are too many features to list here.
When the Upgrade Is Done
You'll feel good about having a great radio in your Ford Fairlane, and your car will feel like new. Upgrades matter, even for a classic Fairlane, so choose the radio that gets the job done right.
USA-630 for Ford Fairlane In Dash AM/FM: Frequently Asked Questions
Will it fit my Ford Fairlane without cutting the dash?
This listing is the version made for the Ford Fairlane, designed to go into the original dash opening. Custom Autosound says its radios fit without altering or cutting the original dash.
Can I buy speakers and an antenna at the same time?
The options on this page let you add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and a hideaway antenna.
What features does the USA-630 have?
Custom Autosound rates it at 300 watts peak (45 watts RMS x 4), with four RCA pre-outs for adding amplifiers. A USB port plays MP3 and WMA files from a flash drive, and the display shows artist and song titles.
What if my Ford Fairlane has air conditioning?
Select Yes or No under Factory Air so we send the correct setup for your Ford Fairlane's dash.
What do I get with the USA-630 in my Ford Fairlane?
It can directly control Custom Autosound's optional CD-1 player. Bluetooth streaming and hands-free calling come from Custom Autosound's optional BluKit, which works with the USA-630.
What can the USA-630 do?
It also has digital EQ, separate bass and treble, loudness, a 4-way fader and a 2-channel RCA auxiliary input with cable included. The RDS tuner shows station, song and artist information, and you get 25 presets (15 FM, 10 AM).
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Ford Fairlane
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Ford Fairlane
- This radio is sold for the factory Ford Fairlane opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Ford Fairlane USA-630
Will this fit my classic Ford Fairlane without cutting the dash?
It is built for the original radio opening used on classic Ford Fairlane models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
