Product Description
Two Masters Together
Your classic GMC truck is a master at everything it does. You can count on it to get the work done and still be ready for fun.

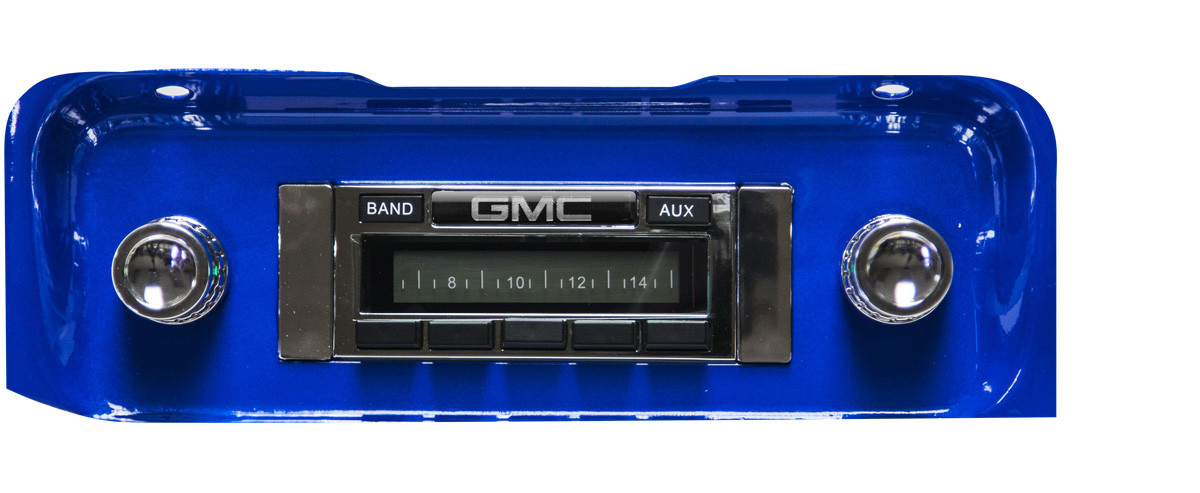

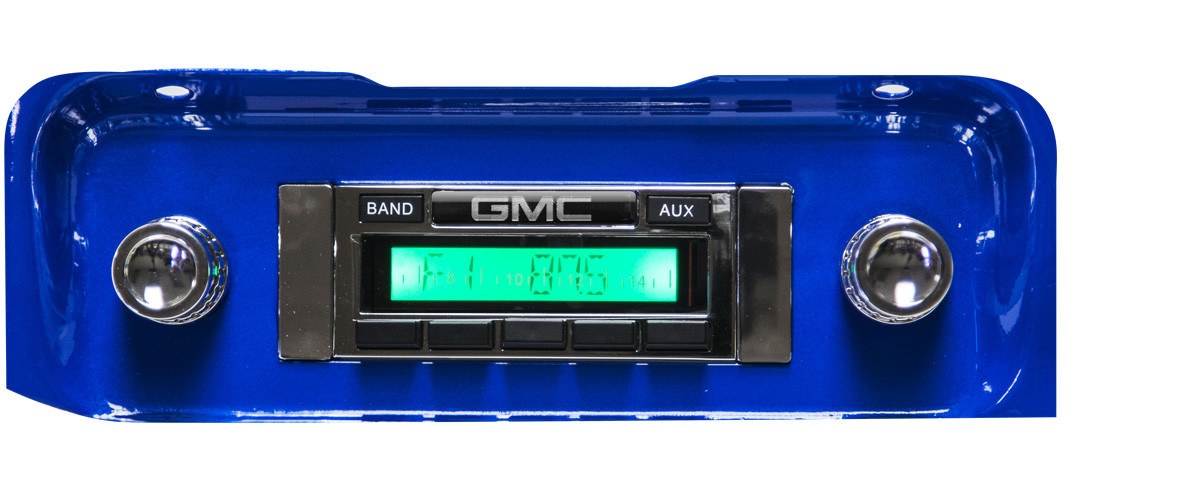

The Custom Autosound USA-230 is a master at great audio. It fits your GMC truck like a glove and performs flawlessly.
The Perfect Blend
You already know what your classic GMC truck offers: strength, class and durability. Add the USA-230's features and you have the perfect blend.
The USA-230's 200 watts keep your 16 AM/FM presets (12 FM, 4 AM) heard above road noise, and the power antenna lead helps pull in clear signals.
The electronic tuner dials in stations with ease, for great audio all day long. And that's not all the USA-230 brings.
There's also a 4-way fader, a 1/8-inch aux input and 4-channel RCA pre-outs to make everything you hear sound smoother and better.
The Right Match
That's what you get with the Custom Autosound USA-230 in your classic GMC truck's dash. It installs easily and gives you the sound to carry you through the day.
There's no better way to ride than with the perfect blend at your fingertips.
This radio features:
● AM/FM stereo
● 200 Watts (4x50)
● Auxiliary Input (RCA Rear) RCA to 1/8" pin jack included
● Digital Clock
● Electronic Tuner
● 16 presets (12 FM, 4 AM)
● 4 Channel RCA Pre-outs
● 4-way fader
● Power Antenna Lead
Available with a black or chrome face
USA-230 In Dash AM/FM FAQ
Will this fit my car?
Our vehicle search lists it for the GMC Truck. If yours isn't listed, contact us before ordering.
What features does the USA-230 have?
It skips the USB port, iPod dock and CD changer control found on the USA-630, but keeps the same look. There's a rear RCA auxiliary input, and Custom Autosound includes an RCA to 1/8" pin jack cable for phones, MP3 players or satellite tuners.
How do I tell you which car it's going in?
Enter your vehicle's year, make and model in the fields on this page before adding it to the cart.
Can I buy speakers and an antenna at the same time?
Add-ons offered here are a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna).
How does the USA-230 handle phone audio and connections?
The electronic tuner stores 16 presets, 12 FM and 4 AM. It's rated at 200 watts (4x50) and has 4-channel RCA pre-outs, so you can add an outboard amplifier later.
What else should I know about the USA-230?
It has a digital clock, a 4-way fader and a power antenna lead.
USA-230 specifications
- 200 watts peak power (50W x 4)
- AM/FM stereo tuner
- RCA auxiliary input
- 12 FM and 4 AM presets
- Electronic tuning and volume

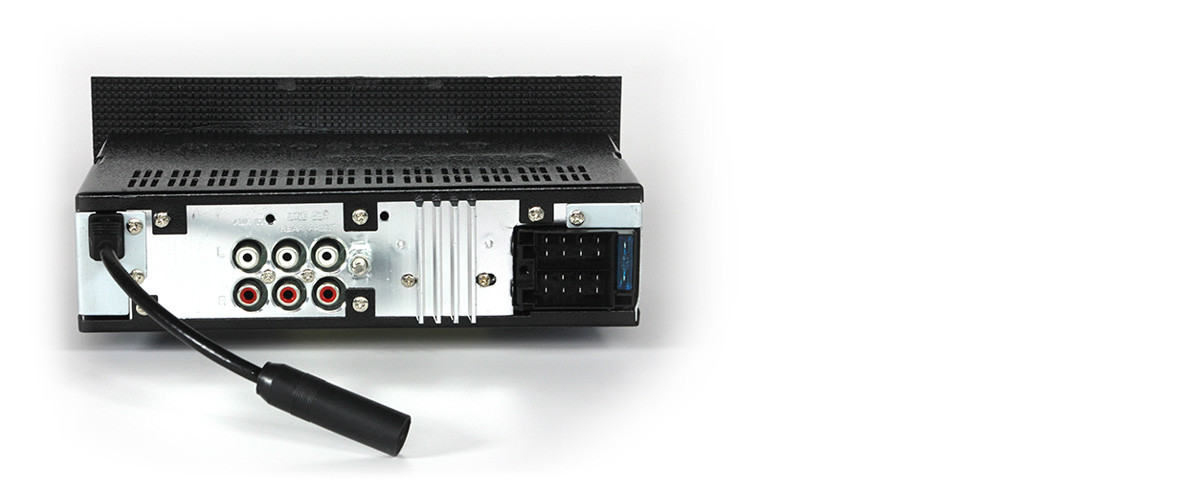

- 4-channel RCA pre-outs for an external amplifier
- Separate bass and treble controls
- 4-way fader and left/right balance
- Power antenna lead
- Designed for original classic dash openings (no DIN cut required for vehicle-specific faceplates)
- Custom Autosound 2-year manufacturer warranty
USA-230 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-230 extras
Use the rear RCA AUX for a wired player. Pre-outs support adding an amplifier later without replacing the radio.
Suggested order for a vintage classic car
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for vintage classic car
- This radio is sold for the factory classic car opening used in vintage models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-230 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — vintage classic car USA-230
Will this fit my vintage classic car without cutting the dash?
It is built for the original radio opening used on vintage classic car models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-230 is a wired/AUX-focused radio without built-in Bluetooth. Consider a USA-740 or USA-850 if you want Bluetooth built in.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
