Product Description

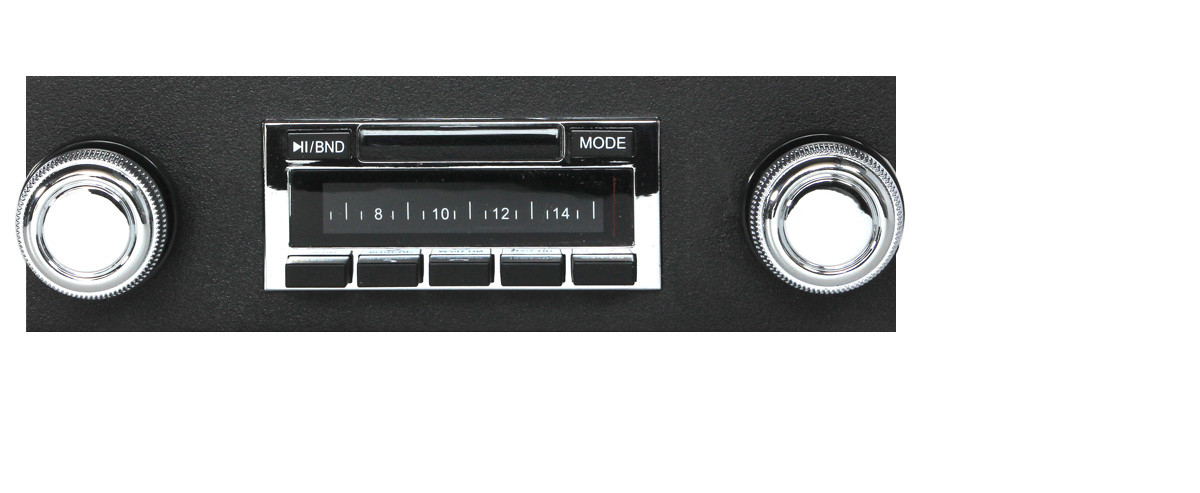

Custom Autosound USA-630 In Dash AM/FM 93 for Pinto
IT MAY NOT BE THE BEST-KNOWN CAR, but it's worthy of a great radio.
When it's time to replace the radio in your Pinto, check out the Custom Autosound USA-630 from Vintage Car Radio. It's made to fit your Pinto. Call us at 574-226-6676 to confirm fit for your year.
Why This Radio?
The USA-630 has what it takes to turn your little Pinto into a big sound machine, starting with 300 watts peak power to fill every corner of your car.
A power antenna lead feeds radio signals to the RDS electronic tuner, which holds 25 presets (15 FM, 10 AM).
But that's not all. You get more music choices with control of an optional CD changer, plus iPod, MP3 and WMA sources. Song and artist names appear in your choice of 7 colors on the LCD screen.
If that isn't enough, consider the controls. The USA-630 has volume, balance, treble and bass, plus a digital EQ to perfect your sound.
To top it off, there's a 4-way fader, 2-channel RCA input jacks and 4-channel RCA pre-outs, plus a digital clock to keep you on time.
Your Pinto Deserves the Best.
The best is the USA-630. Contact Vintage Car Radio today to learn more, and hear the difference between this car radio and the rest. There's only one Custom Autosound USA-630.
USA-630 In Dash AM/FM 93 for Pinto: Your Questions Answered
Will it fit my Pinto without cutting the dash?
This listing is the version made for the Pinto, designed to go into the original dash opening. Custom Autosound says its radios fit without altering or cutting the original dash.
Why does the order ask about factory air?
The Factory Air option tells us which dash layout your Pinto has, so pick Yes if it has factory A/C.
Which add-ons are offered with this radio?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna) right from the options above.
What do I get with the USA-630 in my Pinto?
It also has digital EQ, separate bass and treble, loudness, a 4-way fader and a 2-channel RCA auxiliary input with cable included. Bluetooth streaming and hands-free calling come from Custom Autosound's optional BluKit, which works with the USA-630.
What features does the USA-630 have?
It can directly control Custom Autosound's optional CD-1 player. Custom Autosound rates it at 300 watts peak (45 watts RMS x 4), with four RCA pre-outs for adding amplifiers.
Can I add a CD player or Bluetooth?
Yes. The options include Single Slave CD.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Pinto
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Pinto
- This radio is sold for the factory Pinto opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Pinto USA-630
Will this fit my classic Pinto without cutting the dash?
It is built for the original radio opening used on classic Pinto models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
