Product Description

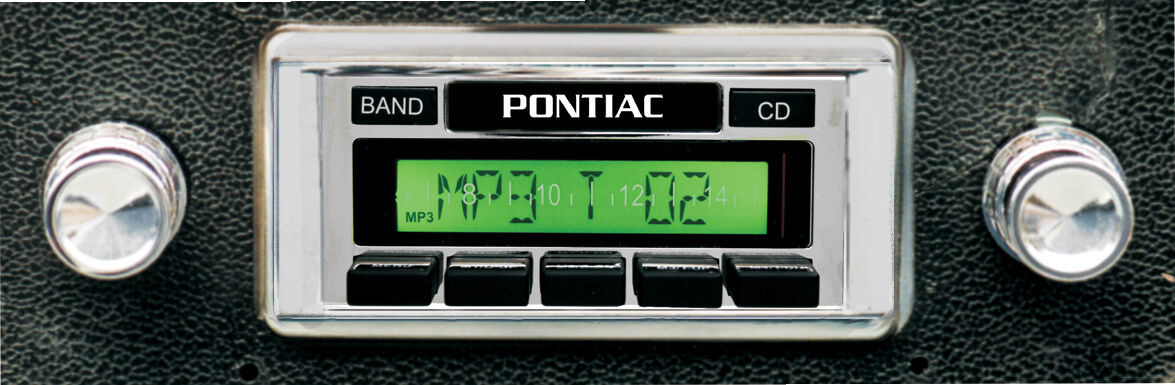

The Custom Autosound USA-630 is a great choice for quality audio in a classic Pontiac. It is packed with features, from an RDS tuner to USB and iPod control.
Fit and Ordering
This listing is the classic Pontiac version of the USA-630. Pontiac dashes vary by model and year, so confirm fit for your car before ordering. Call us at 574-226-6676 to confirm fit for your year.
When you order, the form asks for:
- Factory Air (Yes or No)
- Voltage (12 volt or 6 volt)
- Ground (Negative or Positive)
The Radio in Brief
With 300 watts peak, an RDS display and a full set of tone controls, the USA-630 is the step up from the USA-230. It has the same classic styling, plus USB, iPod control and CD changer control for owners who want more ways to play music.
Classic Look, Modern Function
An original radio may look great, but it rarely works well today and cannot play your own music. A modern radio made for the dash gives you dependable reception, presets and inputs for your devices without changing the period appearance of the interior.
Key Features
- 16 presets (12 FM and 4 AM) and a USA/Euro tuner
- 4-channel RCA pre-outs, power antenna lead and an always-on digital clock
- AM/FM stereo with an RDS tuner that shows artist, song and station
- 300 watts peak power
- USB port for WMA/MP3 files on a flash drive
- iPod dock with control buttons
- 2-channel RCA auxiliary input
- Direct control of an optional CD changer
- Negative LCD (white characters on black) with alphanumeric text
- Loudness, digital EQ, separate bass and treble, 4-way fader and left/right balance
Options on This Page
- CD/Bluetooth: a single slave CD player that the radio controls, or a Bluetooth adapter (Custom Autosound's BluKit) for music streaming and hands-free calls
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Hideaway antenna
Tuner and Inputs
The RDS tuner shows songs, artists and stations, and the USA/Euro tuner adds flexibility. The 2-channel auxiliary input and USB port cover portable devices.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
Installation Notes
Custom Autosound radios run on 12-volt negative ground. The Voltage and Ground menus tell us what your car has. For 6-volt negative ground systems Custom Autosound makes the NGVB-HC voltage booster, and for positive ground systems it makes the PGPI-HC power inverter. Contact us if you are not sure which your car needs.
Take your time behind the dash: label the old wires, replace anything brittle, fuse the power lead and ground the radio to clean metal. If you are not comfortable with automotive wiring, have an auto radio specialist install it. Vintage Car Radio sells the radio and accessories but does not offer installation.
Custom Autosound USA-630 for Pontiac FAQ
Will it fit my Pontiac?
This is the Pontiac version. Call us to confirm fit for your model and year.
Can I add kick panels?
Yes.
Can it control a CD changer?
Yes, an optional one.
Can I add Bluetooth?
Yes, with the BluKit adapter.
What is the warranty?
2 years from Custom Autosound.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Pontiac
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Pontiac
- This radio is sold for the factory Pontiac opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Pontiac USA-630
Will this fit my classic Pontiac without cutting the dash?
It is built for the original radio opening used on classic Pontiac models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
