Product Description

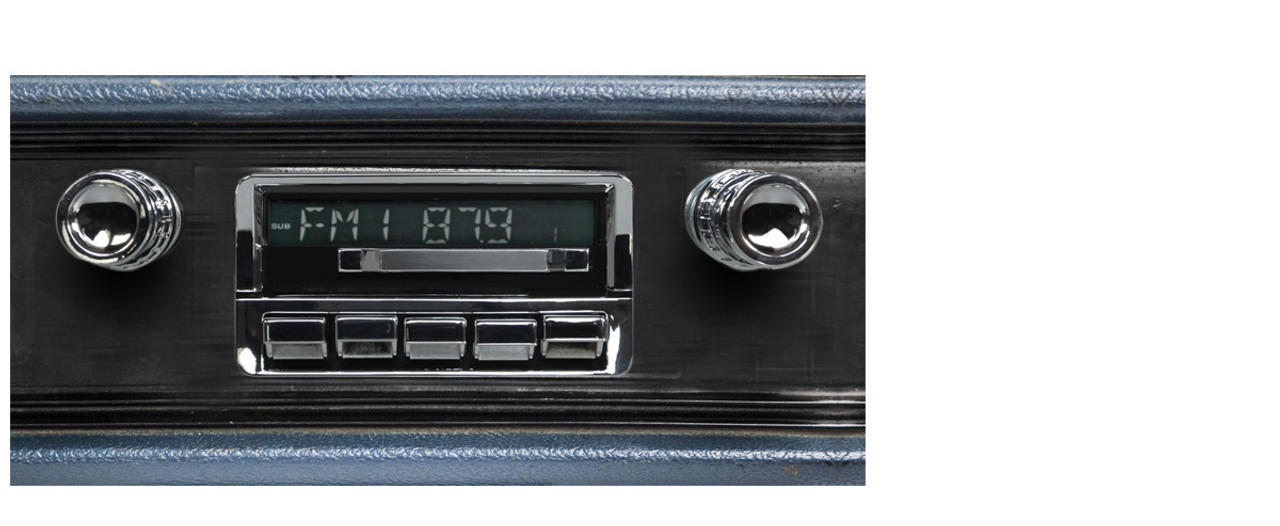

The 1970-74 Chevy Caprice was Chevrolet's top full-size car, with a wide dash and a comfortable cabin. This Custom Autosound Slidebar radio is the 1970-1974 Caprice version. At a glance it looks like a period radio, but slide the bar to the right and a full digital display appears with modern features behind it.
How the Slidebar Works
The face carries a working slide bar like an original dial pointer. Slide it right and the digital display is revealed. Slide it back and the dash looks original again. This lets you keep the look of the Caprice without hiding modern features in the glove box.
Features
- Bluetooth streaming and hands-free calling, as this listing describes
- True working slidebar display that slides right to reveal a full digital display
- Large OEM-style pushbuttons
- Seven backlight colors with a dimmer
- AM/FM RDS tuner with 25 presets (15 FM and 10 AM) that shows station, song and artist
- USB input for flash drives and an iPod dock with song navigation
- 300 watts peak
- Four RCA pre-outs and a subwoofer output with level and crossover adjustment
- Bass, mid and treble controls, loudness and DSP EQ
- Aux input for satellite radio or a portable player
- Direct control of the optional CD-1 player
- Power antenna lead and digital clock
Options on This Page
- CD Player: add a CD player that works with the radio
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Antenna: hideaway antenna or power antenna
Building the System
The Caprice has room for more than the original dash speaker. A front dual voice coil speaker carries both stereo channels from the dash, and a rear 6x9 pair, Custom Autosound or upgraded Pioneer, completes the system. The four pre-outs and subwoofer output make it easy to add an amplifier later.
Radio Data System
The RDS tuner shows station names and, where broadcast, song and artist, so you know what is playing. With 15 FM and 10 AM presets you can store all your favorite stations.
Electrical Requirements
Custom Autosound radios are built for 12-volt negative ground systems, which the 1970-74 Caprice uses from the factory. If your car has been modified, check the system before installing.
Installation
The Slidebar is made to fit the factory radio opening without cutting the dash. Most owners can install it with basic tools. Disconnect the battery, check the wiring and test before you put the dash back together.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
Custom Autosound Slidebar for 1970-74 Caprice FAQ
Will it fit my Caprice?
This is the 1970-1974 Caprice version, made for the factory radio opening. Contact us to confirm fit for your year.
Does it look like the original?
Yes, until you slide the bar to reveal the digital display.
How many presets are there?
25: 15 FM and 10 AM.
Can I add a CD player?
Yes. A single slave CD player is offered.
What is the warranty?
2 years from Custom Autosound.
Slidebar radio specifications
- High power: max 300 watts (45W × 4 output channels per Slidebar user manual)
- AM/FM with RDS; 25 presets
- 7 selectable LCD color choices; hideaway digital display with classic slidebar look
- USB MP3/WMA player; iPod dock charge and control (30-pin cable; USB iPod/iPhone not supported)
- CD changer controller (Custom Autosound CD1 or USA-CD60)
- Auxiliary input; RCA pre-outs (2 pair) plus subwoofer line out with crossover
- Front/rear fader; left/right balance; bass / mid / treble; DSP EQ; loudness; clock
- Power antenna lead; last-volume memory
- Direct fit to OEM dash opening (vehicle-specific conversion)
- 12 V negative-ground only; speaker impedance 4–8 Ω
- Optional BluKit Bluetooth adapter for streaming / hands-free
- Custom Autosound 2-year parts / 1-year labor limited warranty (in-dash radios)
Slidebar wiring and tech tips
Typical Custom Autosound harness (confirm against the printed diagram that ships with your unit):
| Function | Wire |
|---|---|
| Ignition / ACC +12V | Red |
| Memory / constant +12V | Yellow |
| Ground | Black |
| Power antenna / remote | Blue (fully automatic antennas only) |
Important: Both red and yellow must be connected. Do not connect the blue lead to a semi-automatic (knob/switch) factory antenna — that can damage the radio (per Slidebar manual).
Speakers: 4–8 Ω; do not common speaker negatives to chassis ground. Rear mounting strap required (omission voids warranty per manual).
Vehicle: 1970-74 Chevy Caprice. Disconnect the battery before wiring. Vintage Car Radio does not install.
Slidebar manuals
Vintage Car Radio does not offer installation.
Custom Autosound Limited Warranty
Per the Custom Autosound Slidebar / in-dash radio user manuals, parts are covered for 2 years and labor for 1 year from original purchase for defects in materials and workmanship (original purchaser).
Warranty does not cover antenna problems, installation damage, misuse, or unrelated vehicle electrical issues. Call Vintage Car Radio at 844-802-4499 or 574-226-6676 for help coordinating service.
Vintage Car Radio does not offer installation.
FAQ — 1970-74 Chevy Caprice Slidebar
Will this fit without cutting the dash?
Slidebar conversions are made for the OEM opening for 1970-74 Chevy Caprice. Compare your dash to the product photos.
Bluetooth?
Bluetooth is available via the optional Custom Autosound BluKit adapter (unless your package already includes it).
Do you install?
No.
Warranty?
Custom Autosound in-dash radios: 2-year parts / 1-year labor per the Slidebar user manual.
Need help?
844-802-4499 or 574-226-6676.
