Product Description
Custom Autosound's Slidebar Radio for the 1969-72 Chevy Chevelle gives you a completely authentic looking stereo without giving up modern technology, and it fits the dash without modifications.
Two Displays in One

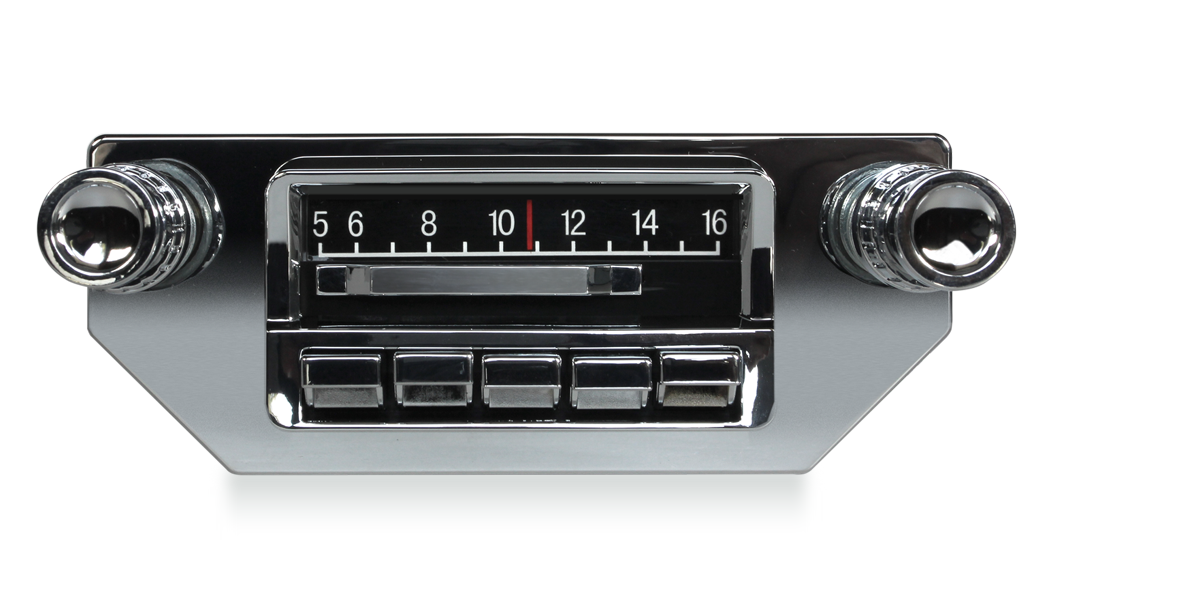

The Slidebar gives you a true working slidebar display and a full-featured digital display in the same stereo. Slide the bar in the center of the radio to the right to hide the analog slidebar and reveal the digital display underneath. Large OEM-style pushbuttons complement the look of the Chevelle, and the display offers seven backlight colors so you can match your instrument lighting.
Features
- True working slidebar display that slides right to reveal a full digital display
- Large OEM-style pushbuttons
- Seven backlight colors with a dimmer
- Bluetooth for streaming and hands-free calls, with a built-in microphone
- AM/FM RDS tuner with 25 presets (15 FM and 10 AM) that shows station, song and artist
- USB input for flash drives and an iPod dock, with artist, song and album display and song navigation
- 300 watts peak
- Four RCA pre-outs and a subwoofer output with level and crossover adjustment
- Bass, mid and treble controls, loudness and DSP EQ
- Aux input for satellite radio or a portable player
- Direct control of the optional CD-1 player
- Power antenna lead and digital clock
Fit
This version fits the factory radio opening of the 1969-72 Chevelle without modifications. Custom Autosound's fitment notes say it does not fit cars with the SS dash or an SS radio bezel installed, so check your dash before ordering and contact us if you are unsure.
Ordering Options
- CD Player: add a CD player that works with the radio
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Antenna: hideaway antenna or power antenna
Kick Panels and Speakers
The 1969-72 Chevelle has a single dash speaker location. A front dual voice coil speaker gives stereo from that spot, kick panels add front speakers without cutting the doors, and a rear 6x9 pair fills the back. With four pre-outs and a subwoofer output, you can add amplifiers later.
Electrical Requirements
Custom Autosound radios run on 12-volt negative ground. Inspect the car's wiring before installing, add a fuse to the power lead and test the radio before reassembling the dash.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
Why the Slidebar
Many Chevelle owners want modern sound but not a digital screen in a classic dash. With the bar slid left, the Slidebar looks like a period radio; slide it right and you have RDS text, USB, iPod control and Bluetooth.
1969-72 Chevelle Slidebar FAQ
Does the slidebar actually work?
Yes. Slide it right to reveal the digital display.
Will it fit my SS Chevelle?
Custom Autosound notes it does not fit the SS dash or cars with an SS radio bezel installed. Contact us first.
Does it have Bluetooth?
Yes, for streaming and hands-free calls.
Can I add kick panels?
Yes, with speakers, without speakers or with a Pioneer upgrade.
What is the warranty?
2 years from Custom Autosound.
Slidebar radio specifications
- This listing includes Bluetooth capability as sold (BluKit or equivalent package — see product title/overview)
- High power: max 300 watts (45W × 4 output channels per Slidebar user manual)
- AM/FM with RDS; 25 presets
- 7 selectable LCD color choices; hideaway digital display with classic slidebar look
- USB MP3/WMA player; iPod dock charge and control (30-pin cable; USB iPod/iPhone not supported)
- CD changer controller (Custom Autosound CD1 or USA-CD60)
- Auxiliary input; RCA pre-outs (2 pair) plus subwoofer line out with crossover
- Front/rear fader; left/right balance; bass / mid / treble; DSP EQ; loudness; clock
- Power antenna lead; last-volume memory
- Direct fit to OEM dash opening (vehicle-specific conversion)
- 12 V negative-ground only; speaker impedance 4–8 Ω
- Optional BluKit Bluetooth adapter for streaming / hands-free
- Custom Autosound 2-year parts / 1-year labor limited warranty (in-dash radios)

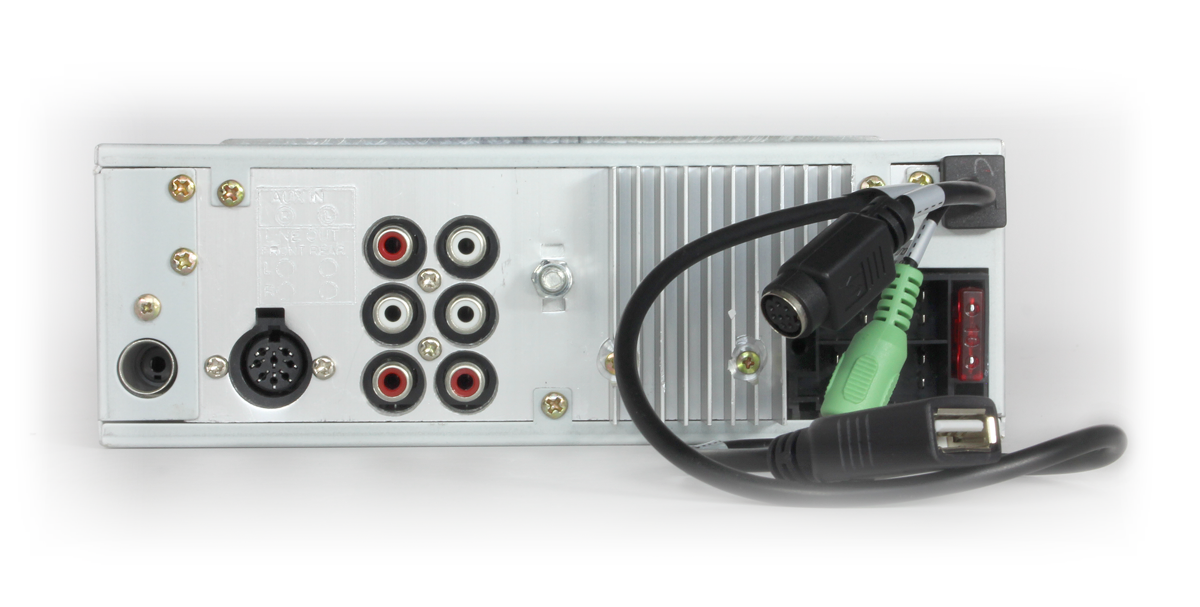

Slidebar wiring and tech tips
Typical Custom Autosound harness (confirm against the printed diagram that ships with your unit):
| Function | Wire |
|---|---|
| Ignition / ACC +12V | Red |
| Memory / constant +12V | Yellow |
| Ground | Black |
| Power antenna / remote | Blue (fully automatic antennas only) |
Important: Both red and yellow must be connected. Do not connect the blue lead to a semi-automatic (knob/switch) factory antenna — that can damage the radio (per Slidebar manual).
Speakers: 4–8 Ω; do not common speaker negatives to chassis ground. Rear mounting strap required (omission voids warranty per manual).
Vehicle: 1969-72 Custom Autosound Chevy Chevelle. Disconnect the battery before wiring. Vintage Car Radio does not install.
Slidebar manuals
Vintage Car Radio does not offer installation.
Custom Autosound Limited Warranty
Per the Custom Autosound Slidebar / in-dash radio user manuals, parts are covered for 2 years and labor for 1 year from original purchase for defects in materials and workmanship (original purchaser).
Warranty does not cover antenna problems, installation damage, misuse, or unrelated vehicle electrical issues. Call Vintage Car Radio at 844-802-4499 or 574-226-6676 for help coordinating service.
Vintage Car Radio does not offer installation.
FAQ — 1969-72 Custom Autosound Chevy Chevelle Slidebar
Will this fit without cutting the dash?
Slidebar conversions are made for the OEM opening for 1969-72 Custom Autosound Chevy Chevelle. Compare your dash to the product photos.
Bluetooth?
This listing is sold with Bluetooth as titled.
Do you install?
No.
Warranty?
Custom Autosound in-dash radios: 2-year parts / 1-year labor per the Slidebar user manual.
Need help?
844-802-4499 or 574-226-6676.
