Product Description

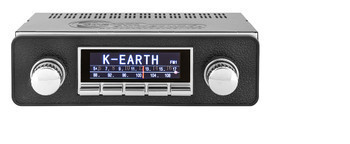

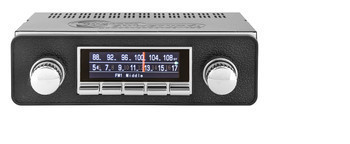

Custom Autosound USA-850 for a 1959-63 Buick Invicta
Custom Autosound USA-850 for 1959-63 Buick Invicta – Modern Sound with a Classic Look
The 1959-63 Buick Invicta is a true classic, known for its bold styling and powerful performance. However, when it comes to the factory radio, it lacks the modern audio features that today’s drivers expect. That’s where the Custom Autosound USA-850 comes in. Available from Vintage Car Radio, this high-quality radio upgrade is designed to seamlessly fit into your Buick Invicta’s dashboard while delivering advanced technology and superior sound quality.
One of the standout features of the USA-850 is its Bluetooth connectivity, allowing you to stream music wirelessly from your smartphone or tablet. Whether you’re cruising down the highway or parked at a car show, you can enjoy your favorite playlists or take hands-free calls without compromising the factory appearance of your dashboard.
The USA-850 also features a digital AM/FM tuner with 30 presets, ensuring you have access to all your favorite stations. For those who prefer external media, the unit includes USB and auxiliary inputs, making it easy to connect MP3 players or flash drives. Additionally, it is CD changer compatible, allowing you to integrate a separate CD player for even more music options.
With 300 watts of power (75 watts per channel), the USA-850 delivers exceptional sound quality, ensuring that your music is heard loud and clear. The four-channel RCA pre-outs and subwoofer output give you the flexibility to expand your audio system with additional amplifiers and speakers.
Designed to fit perfectly into the dash of your 1959-63 Buick Invicta, the USA-850 maintains the classic look while providing a modern, high-performance audio experience. If you're looking to upgrade your Invicta’s sound system without altering its vintage charm, Vintage Car Radio has you covered with the Custom Autosound USA-850.
Specifications
• 4 programmable screen options
• Working analog dial
• Custom Fit In Dash
• 6-volt RCA Pre-Outs and dual subwoofer pre-outs
• DSP EQ
• Subwoofer control
• Bass, treble, mid
• Fader/balance
• Loudness on/off
• CD Controller
• RCA AUX in
• Bluetooth
• 75W X 4 Peak (300W max)
• PLL Tuner
• Power Supply 12 VDC negative ground
• Speaker impedance 2-8
• 4 lbs shipped
• Shipping box 12 X 11 X 5
• Fits all CAS current applications (400+)
USA-850 for a 1959-63 Buick Invicta: Your Questions Answered
Do I need to modify the 1959-63 Buick Invicta dash to install it?
This version is built for the 1959-63 Buick Invicta and is made to fit the factory radio opening. Custom Autosound says its radios fit without altering or cutting the original dash.
Is there a CD or Bluetooth upgrade?
Check the CD options on this page, which include Single Slave CD.
How does the USA-850 handle phone audio and connections?
It streams music and takes calls over Bluetooth. The DigaDial display gives you 4 screen choices, including a classic analog dial with a red needle that glides across the stations, or an all-digital RDS display.
What can I add to my USA-850 for a 1959-63 Buick Invicta order?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), and an antenna (Hideaway Antenna and Power Antenna) right from the options above.
What features does the USA-850 have?
It has a rear RCA input and controls the optional CD-1 single CD player, and installation uses a simple 3-wire power harness. Custom Autosound rates it at 75 watts x 4 peak (300 watts max), with 6-volt RCA pre-outs and dual subwoofer pre-outs.
What about older positive-ground electrical systems?
The order form has Voltage (12 Volt and 6 Volt) and Ground (Negative and Positive) options, so set them to match your 1959-63 Buick Invicta.
USA-850 specifications
- DigaDial selectable display (including working analog-style dial and digital RDS views)
- Bluetooth built in (streaming and hands-free calling)
- 300 watts peak power (75W x 4 peak)
- AM/FM stereo tuner with RDS
- 25 presets
- USB port for MP3/WMA/FLAC/WAV playback and phone charging
- Rear RCA auxiliary input
- Direct control for optional CD-1
- 6-volt RCA pre-outs plus dual subwoofer pre-outs
- Bass, midrange, and treble; DSP EQ (Flat, Classic, Pop, Rock)
- Front/rear fader and left/right balance; loudness
- Power antenna lead; digital clock
- 12V negative-ground; 2–8 ohm speakers
- Designed for original classic dash openings (vehicle-specific faceplate)
- Custom Autosound 2-year manufacturer warranty
USA-850 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-850 extras
Expect antenna, USB (playback and phone charge), Bluetooth microphone, optional CD-1 control, 6V front/rear RCA pre-outs, and dual subwoofer pre-outs. Use the rear RCA AUX for a wired player. Pick your DigaDial display style in the radio menu after power-up.
Suggested order for a 1959-1963 Buick Invicta
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1959-1963 Buick Invicta
- This radio is sold for the factory Buick Invicta opening used in 1959-1963 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-850 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1959-1963 Buick Invicta USA-850
Will this fit my 1959-1963 Buick Invicta without cutting the dash?
It is built for the original radio opening used on 1959-1963 Buick Invicta models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
Yes—Bluetooth is built into the USA-850 for streaming and hands-free calling. The DigaDial display also offers selectable classic dial and digital views.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
