Product Description

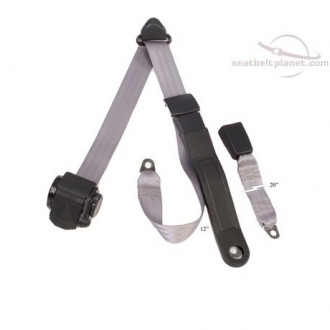

A retractable lap and shoulder belt is the most comfortable kind of seat belt: it stays out of the way when unbuckled and adjusts as you move. This Seatbelt Planet 3-Point Retractable End Release belt is sold for one seating position and works in the front or rear of most classic cars and trucks. The end release buckle has the classic look found in many vintage vehicles.
Retractor Length and Buckle
The web length and buckle menu offers nine combinations:
- 110", 125" or 140" retractor webbing
- Each with an 8" black sleeved buckle, a 12" sleeved buckle or a 20" fixed buckle
Choose a sleeved buckle for bucket seats or the 20" fixed buckle for bench seats. Seatbelt Planet notes that the 140" retractor fits most vehicles.
Shoulder Loop
The Shoulder Loop menu lets you choose a regular shoulder loop, an extended 8" black loop or no shoulder loop. The sash guide loop keeps the shoulder webbing running at the right angle across the occupant.
Specifications
- Sold individually, for one person
- End release buckle
- 30 webbing colors
- Color-matched plastic components with Red, Flame Red, Maroon, Red Wine, Tan, Desert Tan, Medium Beige, Navy, Grey and Silver webbing; Camel comes with tan components and all other colors use black
- Matching thread on Red, Flame Red, Maroon, Red Wine, Wine & Roses, Tan, Desert Tan, Medium Beige, Navy, Powder Blue, Cobalt, Grey and Silver; white thread on Wysteria, Lime Green, Orange, Ivory and White
- Meets Federal Motor Vehicle Safety Standards 209 and 302
Mounting
Seatbelt Planet's floor anchor points have a 0.510" hole that accepts a 7/16", 1/2" or 12mm bolt. Mount the retractor solidly, place the shoulder anchor behind and slightly above the occupant's shoulder and make sure the webbing runs straight without twisting. Use backing plates where the metal is thin.
Which Retractor Length?
The 140" retractor is the safe choice when the retractor is mounted low or far from the seat. The 125" and 110" versions suit smaller cabins where the retractor sits closer to the occupant. Measure the path from the retractor, over the shoulder and across the lap to the buckle before ordering, or ask us for help.
Choosing a Color
With 30 webbing colors, you can match almost any interior. Red, Flame Red, Maroon, Red Wine, Tan, Desert Tan, Medium Beige, Navy, Grey and Silver come with color-matched plastic parts for the most factory-like look, while black and the brighter colors suit custom builds.
End Release or Push Button?
End release buckles open by lifting the end of the buckle, and their look suits many vintage vehicles. Push button buckles are familiar to most passengers. Seatbelt Planet offers both styles, so choose the one that fits your car's character.
Seatbelt Planet 3-Point Retractable End Release FAQ
Is this a lap and shoulder belt?
Yes. It is a 3-point retractable belt for one person.
What retractor lengths are offered?
110, 125 and 140 inches. The 140-inch fits most vehicles.
Which buckle option should I choose?
A sleeved buckle for bucket seats or the 20-inch fixed buckle for bench seats.
Can I skip the shoulder loop?
Yes. No shoulder loop is one of the options.
Does it meet safety standards?
The listing states it meets FMVSS 209 and 302.
Seatbelt Planet 3pt Retract End Release Lap & Shoulder Seat Belt 1 specifications
- Seatbelt Planet aftermarket seat belt / restraint product (application per listing title)
- 3-point lap/shoulder style as titled (retractable or fixed per product page)
- Tested and certified to meet FMVSS 209 and FMVSS 302 (certification tag on belts)
- Sold as aftermarket replacement — confirm buckle style, retractable vs fixed, and seat type before order
- Complete belts are preferred; mixing buckle/tongue brands is not recommended (components are designed to work together)
- 1-year manufacturer warranty for component issues from ship date (excludes abuse, accident damage, or disassembly)
- 90-day satisfaction guarantee per Seatbelt Planet (installed returns may incur restocking fee)
Installation Tips — Seatbelt Planet 3pt Retract End Release Lap & Shoulder Seat Belt 1
- Confirm this listing matches your vehicle (the vehicle application shown in the title), seat type (bench vs bucket), and buckle/retractor style before installing.
- Inspect mounting points for solid metal structure. Seatbelt Planet products are aftermarket — fabrication or adapters may be required on some vehicles.
- Use appropriate grade hardware. Some listings sell mounting hardware separately.
- Install a complete belt assembly when possible; do not mix unmatched buckle and tongue brands.
- After install, verify full extension, retraction (if applicable), and latching before driving.
- If unsure, use a professional installer. Improper installation can cause serious injury.
Selection help: Seatbelt Planet FAQ / guides at seatbeltplanet.com/faq.html · phone 405-736-0088.
Vintage Car Radio does not offer installation.
Seatbelt Planet 3pt Retract End Release Lap & Shoulder Seat Belt 1 manuals
- Seatbelt Planet FAQ (FMVSS, warranty, returns)
- Seatbelt Planet common questions / selection help
- Use any instruction sheet packed with your order for model-specific steps
Manufacturer: Seatbelt Planet · 405-736-0088
One-Year Seatbelt Planet Warranty
Per Seatbelt Planet, seat belts are covered under a one-year manufacturer warranty for component issues from the date shipped. Warranty returns are not accepted if there has been obvious abuse, the belt was involved in an accident, or the belt has been disassembled / components removed.
Seatbelt Planet also states a 90-day satisfaction guarantee; installed returns may be subject to a restocking fee. RMA required — contact Seatbelt Planet or Vintage Car Radio at 844-802-4499 / 574-226-6676.
Vintage Car Radio does not install seat belts.
FAQ — Seatbelt Planet 3pt Retract End Release Lap & Shoulder Seat Belt 1
Are these FMVSS / DOT approved?
Seatbelt Planet states belts are tested and certified to FMVSS 209 and 302; the certification tag is on the belt.
Can I replace only one side?
Seatbelt Planet recommends installing a complete belt — buckle and tongue are designed to work together.
Will this fit the vehicle application shown in the title?
Match the years, make/model, and seat position in the title. Call Seatbelt Planet at 405-736-0088 if you need a custom belt.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676, or Seatbelt Planet 405-736-0088.
