Product Description

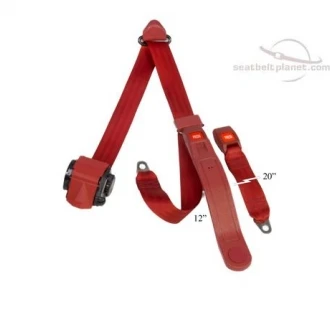

A retractable lap and shoulder belt is the most comfortable kind of seat belt to live with: it stays out of the way when unbuckled and adjusts itself as you move. This Seatbelt Planet 3-Point Retractable Push Button belt is sold for one seating position and works in the front or rear of most classic cars and trucks.
Retractor Length and Buckle
The web length and buckle menu offers six combinations:
- 110" retractor webbing with a 12" sleeve, 20" fixed buckle or 8" black sleeve
- 140" retractor webbing with a 12" sleeve, 20" fixed buckle or 8" black sleeve
Choose a sleeved buckle for bucket seats or the 20" fixed length for bench seats. Seatbelt Planet lists finished lengths of 152" and 160" for the 140" retractor (with the 12" sleeve and 20" fixed buckle) and 122" and 130" for the 110" retractor. The buckle side is measured from the center of the mounting hole to the end of the buckle, and all measurements have a tolerance of plus or minus 1 inch.
Shoulder Loop
The Shoulder Loop menu lets you choose a regular shoulder loop, an extended 8" black loop or no shoulder loop. The no-loop option is used in some two-seat vehicles where the retractor sits behind the occupant.
Specifications
- Sold individually, for one person
- 30 webbing colors
- Color-matched plastic components with Red, Flame Red, Maroon, Red Wine, Tan, Desert Tan, Medium Beige, Navy, Grey and Silver webbing; Camel comes with tan components and all other colors use black
- Matching thread on Red, Flame Red, Maroon, Red Wine, Wine & Roses, Tan, Desert Tan, Medium Beige, Navy, Powder Blue, Cobalt, Grey and Silver; white thread on Wysteria, Lime Green, Orange, Ivory and White
- Chrome plated end fittings
- Meets Federal Motor Vehicle Safety Standards 209 and 302
Mounting
Hardware Kit #1 is available for this belt. Seatbelt Planet's floor anchor points have a 0.510" hole that accepts a 7/16", 1/2" or 12mm bolt. Mount the retractor solidly, place the shoulder anchor behind and slightly above the occupant's shoulder and make sure the webbing runs straight without twisting.
Which Retractor Length?
The 140" retractor fits most vehicles and is the safer choice when the retractor is mounted low or far from the seat. The 110" version suits smaller cabins where the retractor sits close to the occupant. Measure the path from the retractor, over the shoulder and across the lap to the buckle before you order, or ask us for help.
Matching Your Interior
Pick a webbing color that suits your seats and carpet. On the popular reds, tans, navy, grey and silver, the plastic components are color-matched and the thread matches too, which makes a new belt look like it belongs in the car.
Seatbelt Planet 3pt Retractable Push Button Belt FAQ
How many belts are included?
One belt, for one person.
Which retractor length should I choose?
The 140-inch retractor fits most vehicles. The 110-inch version suits compact installs.
Can I use it without a shoulder loop?
Yes. Choose No Shoulder Loop, which is common in some two-seat vehicles.
What hardware do I need?
Hardware Kit #1 is available. The anchors accept 7/16-inch, 1/2-inch or 12mm bolts.
Does it meet safety standards?
The listing states it meets FMVSS 209 and 302.
Seatbelt Planet 3pt Retract Push Button Lap & Shoulder Seat Belt specifications
- Seatbelt Planet aftermarket seat belt / restraint product (application per listing title)
- 3-point lap/shoulder style as titled (retractable or fixed per product page)
- Tested and certified to meet FMVSS 209 and FMVSS 302 (certification tag on belts)
- Sold as aftermarket replacement — confirm buckle style, retractable vs fixed, and seat type before order
- Complete belts are preferred; mixing buckle/tongue brands is not recommended (components are designed to work together)
- 1-year manufacturer warranty for component issues from ship date (excludes abuse, accident damage, or disassembly)
- 90-day satisfaction guarantee per Seatbelt Planet (installed returns may incur restocking fee)
Installation Tips — Seatbelt Planet 3pt Retract Push Button Lap & Shoulder Seat Belt
- Confirm this listing matches your vehicle (the vehicle application shown in the title), seat type (bench vs bucket), and buckle/retractor style before installing.
- Inspect mounting points for solid metal structure. Seatbelt Planet products are aftermarket — fabrication or adapters may be required on some vehicles.
- Use appropriate grade hardware. Some listings sell mounting hardware separately.
- Install a complete belt assembly when possible; do not mix unmatched buckle and tongue brands.
- After install, verify full extension, retraction (if applicable), and latching before driving.
- If unsure, use a professional installer. Improper installation can cause serious injury.
Selection help: Seatbelt Planet FAQ / guides at seatbeltplanet.com/faq.html · phone 405-736-0088.
Vintage Car Radio does not offer installation.
Seatbelt Planet 3pt Retract Push Button Lap & Shoulder Seat Belt manuals
- Seatbelt Planet FAQ (FMVSS, warranty, returns)
- Seatbelt Planet common questions / selection help
- Use any instruction sheet packed with your order for model-specific steps
Manufacturer: Seatbelt Planet · 405-736-0088
One-Year Seatbelt Planet Warranty
Per Seatbelt Planet, seat belts are covered under a one-year manufacturer warranty for component issues from the date shipped. Warranty returns are not accepted if there has been obvious abuse, the belt was involved in an accident, or the belt has been disassembled / components removed.
Seatbelt Planet also states a 90-day satisfaction guarantee; installed returns may be subject to a restocking fee. RMA required — contact Seatbelt Planet or Vintage Car Radio at 844-802-4499 / 574-226-6676.
Vintage Car Radio does not install seat belts.
FAQ — Seatbelt Planet 3pt Retract Push Button Lap & Shoulder Seat Belt
Are these FMVSS / DOT approved?
Seatbelt Planet states belts are tested and certified to FMVSS 209 and 302; the certification tag is on the belt.
Can I replace only one side?
Seatbelt Planet recommends installing a complete belt — buckle and tongue are designed to work together.
Will this fit the vehicle application shown in the title?
Match the years, make/model, and seat position in the title. Call Seatbelt Planet at 405-736-0088 if you need a custom belt.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676, or Seatbelt Planet 405-736-0088.
