Product Description
Little Cars Deserve Great Sound Too
A classic Fiat isn't a big car, but it shouldn't miss out on great sound because of its size.

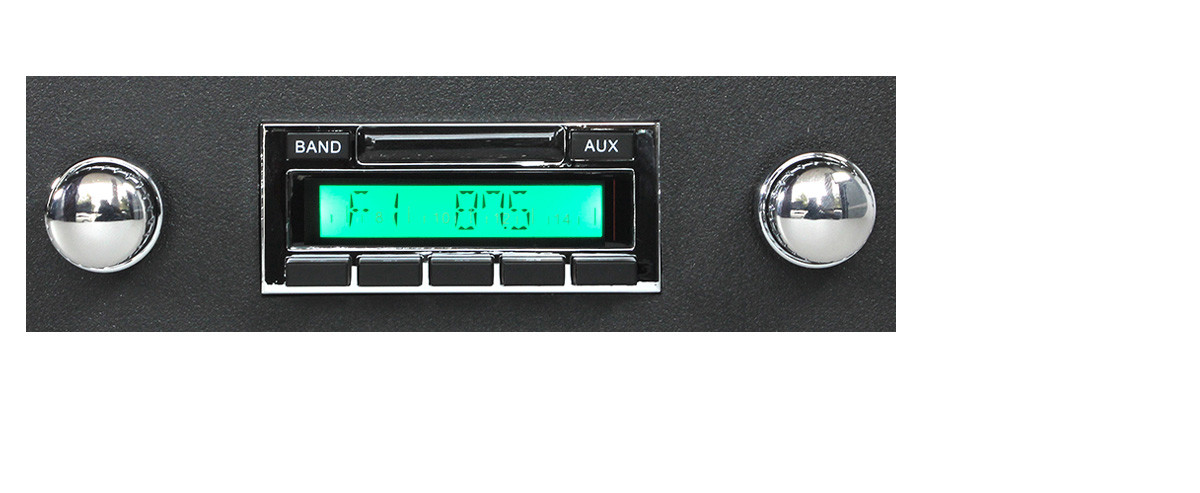

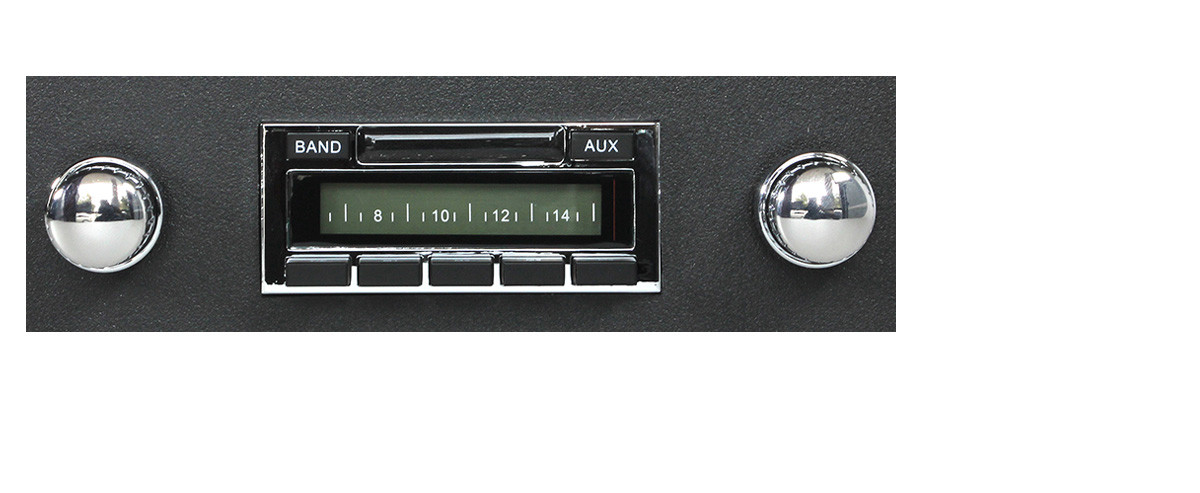

The Custom Autosound USA-230 is made to fit the dash of your classic Fiat and delivers high-quality sound in a small car, just as it would in a big one. Call us at 574-226-6676 to confirm fit for your year.
Everything Works
In your Fiat, you still get great AM/FM sound with 16 presets (12 FM, 4 AM). The precise electronic tuner makes sure you get the right station, whether you want music or talk radio.
A power antenna lead helps you get clear, static-free reception.
Finally, 200 watts of power give you the volume you want anytime. You also get a 4-way fader, RCA pre-outs, an aux jack and a digital clock.
Size Doesn't Matter
When it comes to audio performance, size isn't an issue. The Custom Autosound USA-230 performs just as well in a little car like the classic Fiat as in a big one.
This radio features:
● AM/FM stereo
● 200 Watts (4x50)
● Auxiliary Input (RCA Rear) RCA to 1/8" pin jack included
● Digital Clock
● Electronic Tuner
● 16 presets (12 FM, 4 AM)
● 4 Channel RCA Pre-outs
● 4-way fader
● Power Antenna Lead
Available with a black or chrome face
USA-230 In Dash AM/FM: Frequently Asked Questions
Will this fit my car?
Our vehicle search lists it for the Chrysler Fiat. If yours isn't listed, contact us before ordering.
Can I buy speakers and an antenna at the same time?
The options on this page let you add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna).
What about older positive-ground electrical systems?
The order form has Voltage (12 volt and 6 volt) and Ground (Positive and Negative) options, so set them to match your Chrysler Fiat.
What features does the USA-230 have?
It skips the USB port, iPod dock and CD changer control found on the USA-630, but keeps the same look.
What else should I know about the USA-230?
There's a rear RCA auxiliary input, and Custom Autosound includes an RCA to 1/8" pin jack cable for phones, MP3 players or satellite tuners. It's rated at 200 watts (4x50) and has 4-channel RCA pre-outs, so you can add an outboard amplifier later.
What do I get with the USA-230 in my Chrysler Fiat?
The electronic tuner stores 16 presets, 12 FM and 4 AM. It has a digital clock, a 4-way fader and a power antenna lead.
USA-230 specifications
- 200 watts peak power (50W x 4)
- AM/FM stereo tuner
- RCA auxiliary input
- 12 FM and 4 AM presets
- Electronic tuning and volume
- 4-channel RCA pre-outs for an external amplifier
- Separate bass and treble controls
- 4-way fader and left/right balance
- Power antenna lead
- Designed for original classic dash openings (no DIN cut required for vehicle-specific faceplates)
- Custom Autosound 2-year manufacturer warranty
USA-230 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-230 extras
Use the rear RCA AUX for a wired player. Pre-outs support adding an amplifier later without replacing the radio.
Suggested order for a vintage classic car
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for vintage classic car
- This radio is sold for the factory classic car opening used in vintage models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-230 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — vintage classic car USA-230
Will this fit my vintage classic car without cutting the dash?
It is built for the original radio opening used on vintage classic car models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-230 is a wired/AUX-focused radio without built-in Bluetooth. Consider a USA-740 or USA-850 if you want Bluetooth built in.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
