Product Description

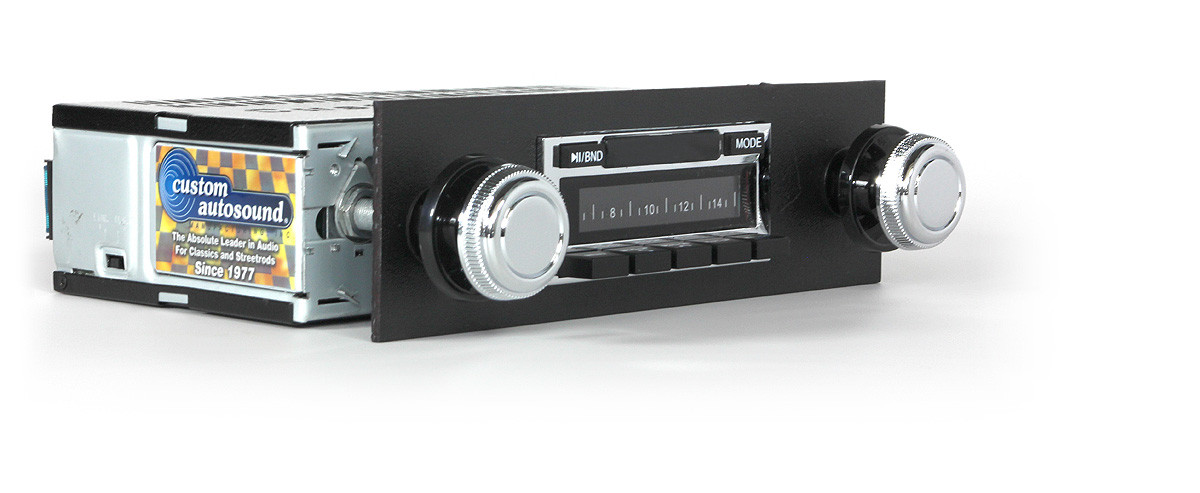

Why choose the Custom Autosound USA-230 from Vintage Car Radio for your classic VW Karmann Ghia?
AM/FM stereo.
Whether you like AM or FM radio, you'll never be limited to one or the other.
200 watts of power
With 200 watts of power, you won't have to worry about sound quality.
Rear auxiliary input with 1/8" pin jack
Plug your phone or MP3 player into the rear auxiliary input and play your own choice of music.
Digital clock
Using your phone while driving is dangerous, so when you're short on time, a quick look at the radio's digital clock keeps you on schedule.
Electronic tuner
The electronic tuner lets you move between your favorite stations with ease.
16 presets (12 FM, 4 AM)
With 16 presets (12 FM, 4 AM), your favorite stations are always saved.
4-channel RCA pre-outs
If you want to add an amplifier, the 4-channel RCA pre-outs make it easy.
4-way fader
A 4-way fader lets you balance the sound just the way you like it.
Power antenna lead
A power antenna lead lets you connect a power antenna for good reception.
This radio features:
● AM/FM stereo
● 200 Watts (4x50)
● Auxiliary Input (RCA Rear) RCA to 1/8" pin jack included
● Digital Clock
● Electronic Tuner
● 16 presets (12 FM, 4 AM)
● 4 Channel RCA Pre-outs
● 4-way fader
● Power Antenna Lead
Available with a black or chrome face
Frequently Asked Questions About the USA-230 In Dash AM/FM
What does the USA-230 In Dash AM/FM fit?
In our year/make/model search it's listed for the Buick LeSabre, Chevy Malibu, Pontiac LeMans, and Volkswagen Karman Ghia. Use the vehicle search to confirm your exact car.
Which add-ons are offered with this radio?
Add-ons offered here are a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna).
Will it work with a 6-volt system?
The order form has Voltage (6 and 12) and Ground (Negative and Positive) options, so set them to match your car.
Does it matter if my car has factory air?
The Factory Air option tells us which dash layout your car has, so pick Yes if it has factory A/C.
What else should I know about the USA-230?
There's a rear RCA auxiliary input, and Custom Autosound includes an RCA to 1/8" pin jack cable for phones, MP3 players or satellite tuners. It has a digital clock, a 4-way fader and a power antenna lead.
Do I need to give you my vehicle details?
Fill in the Year, Make and Model fields when you add it to your cart, so the right setup goes out for your car.
USA-230 specifications
- 200 watts peak power (50W x 4)
- AM/FM stereo tuner
- RCA auxiliary input
- 12 FM and 4 AM presets
- Electronic tuning and volume
- 4-channel RCA pre-outs for an external amplifier
- Separate bass and treble controls
- 4-way fader and left/right balance
- Power antenna lead
- Designed for original classic dash openings (no DIN cut required for vehicle-specific faceplates)
- Custom Autosound 2-year manufacturer warranty
USA-230 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-230 extras
Use the rear RCA AUX for a wired player. Pre-outs support adding an amplifier later without replacing the radio.
Suggested order for a vintage classic car
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for vintage classic car
- This radio is sold for the factory classic car opening used in vintage models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-230 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — vintage classic car USA-230
Will this fit my vintage classic car without cutting the dash?
It is built for the original radio opening used on vintage classic car models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-230 is a wired/AUX-focused radio without built-in Bluetooth. Consider a USA-740 or USA-850 if you want Bluetooth built in.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
