Product Description
Custom Autosound USA-630 for a Jaguar In Dash AM/FM 93
Introducing the Custom Autosound USA-630
For Royalty
The classic Jaguar may not be the king of cars, but it's certainly a member of the royal family. To give it the audio it deserves, choose a member of the radio royal family.
The USA-630 may not be the king of radios, but it belongs to the royal family too. That makes it a perfect fit for your classic Jag.
Equals Spending Time Together
When you match up people or machines, equals make life easier. With 300 watts peak power, the Custom Autosound USA-630 is the Jaguar's equal in power. For handling, it has all the dials and controls, including a digital EQ, to make the sound fit the car.
A power antenna lead helps bring in radio signals, and the RDS electronic tuner shows artist and song names. For a classic car radio, the Custom Autosound USA-630 is hard to beat.
This radio also plays up to 6 CDs through an optional changer, plus MP3, WMA and iPod sources, as smoothly as the Jaguar takes a corner.
The 4-way fader, 2-channel RCA aux inputs and 4-channel RCA pre-outs make the USA-630 as classy as your Jag. When you upgrade the sound in your car, you want its equal, not its inferior.
Royalty Stays with Royalty
That's just the way it is. Your Jaguar is car royalty, so when you replace its radio, it deserves one from the radio royal family. The USA-630 is that radio.
USA-630 for a Jaguar In Dash AM/FM: Frequently Asked Questions
Is this radio made specifically for the Jaguar?
This listing is the version made for the Jaguar, designed to go into the original dash opening. Custom Autosound says its radios fit without altering or cutting the original dash.
Will it work with a 6-volt system?
The order form has Voltage (12 volt and 6 volt) and Ground (Negative and Positive) options, so set them to match your Jaguar.
Which add-ons are offered with this radio?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and an antenna (Hideaway Antenna and Power Antenna) right from the options above.
Can I add a CD player or Bluetooth?
Yes. The options include Single Slave CD and Bluetooth Adapter.
What do I get with the USA-630 in my Jaguar?
It also has digital EQ, separate bass and treble, loudness, a 4-way fader and a 2-channel RCA auxiliary input with cable included. A USB port plays MP3 and WMA files from a flash drive, and the display shows artist and song titles.
What if my Jaguar has air conditioning?
Select Yes or No under Factory Air so we send the correct setup for your Jaguar's dash.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras

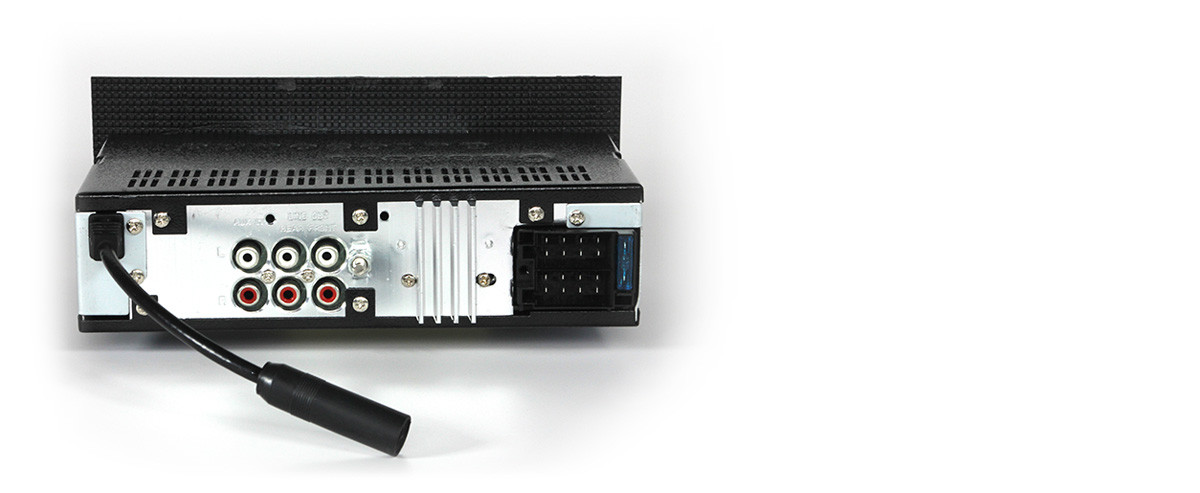

USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Jaguar
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Jaguar
- This radio is sold for the factory Jaguar opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Jaguar USA-630
Will this fit my classic Jaguar without cutting the dash?
It is built for the original radio opening used on classic Jaguar models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
