Product Description

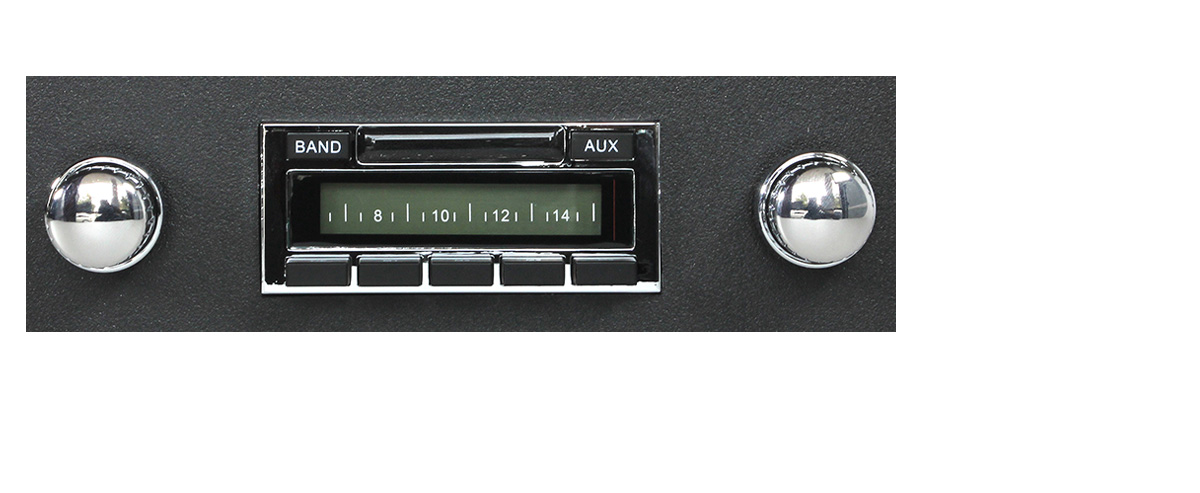

The USA-630 is the latest step in Custom Autosound's quest for the perfect classic car radio. Its large OEM-style push buttons look right at home in a classic dash, but behind them are modern features like an iPod dock. You can browse your iPod by artist, song, album or playlist from the radio's buttons, so the iPod can stay hidden in the glove box or console. A USB input on the back plays MP3/WMA files from a flash drive, and the alphanumeric display shows song, artist and album titles from USB, iPod and RDS radio stations. With the optional BluKit, you can stream music from a Bluetooth phone or player, skip tracks with the radio's track-up button, and take hands-free calls while the music mutes automatically. At 300 watts peak, it has all the power most people need. If you want more, four pre-out jacks on the back connect optional amplifiers, and an auxiliary input accepts satellite radio or any portable player.
As you look over your plans to restore your classic 1946-48 Lincoln, you realize it won't be complete without the USA-630 radio. Made by Custom Autosound, it gives you modern audio technology with the look and feel of a classic car stereo. It fits your Lincoln's dash without modifications, and its large OEM-style push buttons complement the dash. It's up to you whether you tell your classic car friends about its modern features, like the USB input for MP3 and WMA files from a flash drive and the iPod dock. But if they're riding with you, they'll see the display light up with the artist, song and album title.
And with the optional BluKit, the radio can stream music over Bluetooth from your phone and let you talk with friends and family hands-free. As for sound, it has 300 watts peak, and RCA pre-outs let you add an amplifier if you want.
You also get direct control of an optional CD changer, an always-on digital clock and 16 presets (12 FM, 4 AM). Reception is great with the power antenna lead and USA/Euro tuner. It also has left/right balance, loudness compensation, volume control, electronic tuning and much more. With the USA-630 in your dash, you might even enjoy being stuck in traffic.
The USA-630 Features:
• AM/FM stereo
• RDS tuner shows station / song / artist on LCD display
• 300 Watts Peak
• USB Port for Flash Drive MP3/WMA Playback
• iPod dock and control (control your iPod from the buttons on the radio)
• Direct 6 CD Changer Control
• Negative LCD display (Black background with white letters / numbers)
• Alpha Numeric Display for MP3/WMA/ iPod files
• Electronic Tuning and Volume Control
• Loudness compensation
• Digital EQ
• 4-way fader
• Left Right Balance
• Digital Clock
• 2 Channel RCA Auxiliary Input for Satellite etc. (cable included)
• 16 Presets (12 FM, 4 AM)
• 4 Channel RCA Pre-outs
• Separate Bass and Treble
• USA/Euro Tuner
• Power Antenna Lead
1946-48 All Lincolns USA-630 In Dash AM/FM: Frequently Asked Questions
Will this fit my car?
Our vehicle search lists it for the 1946-1948 Ford and 1947-1949 Lincon. If yours isn't listed, contact us before ordering.
Why does the order ask about factory air?
Select Yes or No under Factory Air so we send the correct setup for your 1946-48 All Lincolns's dash.
My 1946-48 All Lincolns is 6-volt or positive ground. Can I still use this?
Choose your system under Voltage (6 and 12) and Ground (Positive and Negative) when you order.
Which add-ons are offered with this radio?
You can add a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), and a hideaway antenna right from the options above.
What do I get with the USA-630 in my 1946-48 All Lincolns?
Bluetooth streaming and hands-free calling come from Custom Autosound's optional BluKit, which works with the USA-630. A USB port plays MP3 and WMA files from a flash drive, and the display shows artist and song titles.
Is there a CD or Bluetooth upgrade?
Yes. The options include Single Slave CD and Bluetooth Adapter.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a 1946-1948 Lincoln
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1946-1948 Lincoln
- This radio is sold for the factory Lincoln opening used in 1946-1948 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1946-1948 Lincoln USA-630
Will this fit my 1946-1948 Lincoln without cutting the dash?
It is built for the original radio opening used on 1946-1948 Lincoln models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
