Product Description
Custom Autosound USA-630 for a Mopar In Dash AM/FM 49
Cars Are Fun to Work On
You can customize them to your heart's content, adding power, better-looking features and a fresh paint job. As you customize your classic Mopar, don't forget the radio. Call us at 574-226-6676 to confirm fit for your year.
It needs an upgrade just like your shifter, exhaust and other parts. A great upgrade for your car is the Custom Autosound USA-630, a classic car stereo that completes your build.
The Power in the Radio
There's more to the USA-630 than its 300 watts peak power. All its parts work together to give your classic Mopar the upgrade it needs.
A power antenna lead helps the RDS electronic tuner get a clear signal on your 25 presets (15 FM, 10 AM), cutting down on static.
Once you have a good signal, fine-tune it with the digital EQ, bass and treble controls and balance. The volume knob handles the levels.

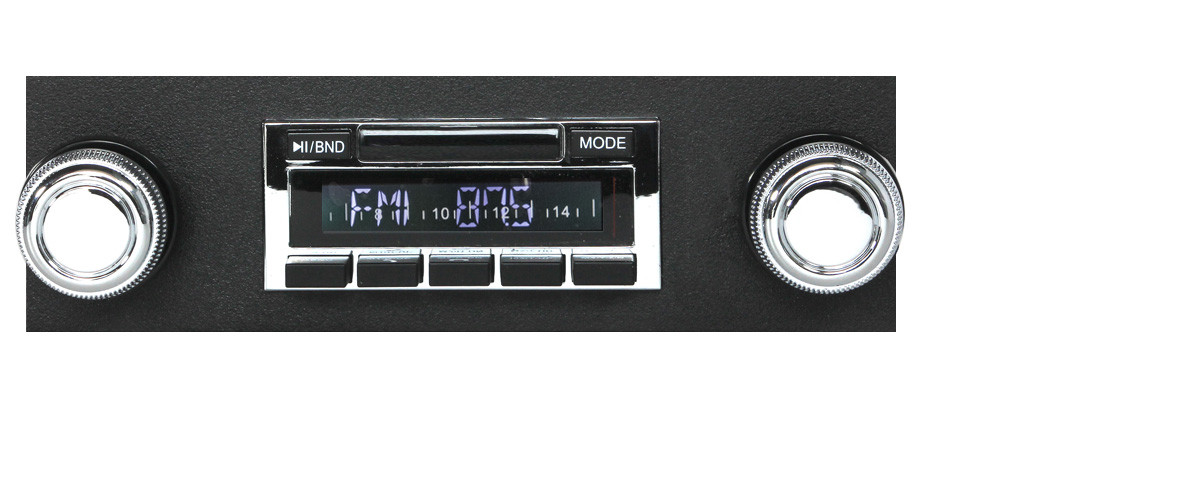

The 7-color LCD shows you what's playing. You also get a 4-way fader, 2-channel RCA aux input jacks and RCA pre-outs for connecting portable devices and amplifiers.
You can also play CDs through an optional changer, plus WMA and MP3 files and your iPod.
Customizing Is Fun
when you go all the way and include the radio. The Custom Autosound USA-630 is a great upgrade for any classic Mopar and has your car sounding great.
The USA-630 Features:
• AM/FM stereo
• RDS tuner shows station / song / artist on LCD display
• 300 Watts Peak
• USB Port for Flash Drive MP3/WMA Playback
• iPod dock and control (control your iPod from the buttons on the radio)
• Direct 6 CD Changer Control
• 7-color LCD display with dimmer control
• Alpha Numeric Display for MP3/WMA/ iPod files
• Electronic Tuning and Volume Control
• Loudness compensation
• Digital EQ
• 4-way fader
• Left Right Balance
• Digital Clock
• 2 Channel RCA Auxiliary Input for Satellite etc. (cable included)
• 25 Presets (15 FM, 10 AM)
• 4 Channel RCA Pre-outs
• Separate Bass and Treble
• USA/Euro Tuner
• Power Antenna Lead
USA-630 for a Mopar In Dash AM/FM FAQ
Will it fit my Mopar without cutting the dash?
This listing is the version made for the Mopar, designed to go into the original dash opening. Custom Autosound says its radios fit without altering or cutting the original dash.
What if my Mopar has air conditioning?
Select Yes or No under Factory Air so we send the correct setup for your Mopar's dash.
Is there a CD or Bluetooth upgrade?
Check the CD options on this page, which include Single Slave CD and Bluetooth adapter.
What do I get with the USA-630 in my Mopar?
Custom Autosound rates it at 300 watts peak (45 watts RMS x 4), with four RCA pre-outs for adding amplifiers. The RDS tuner shows station, song and artist information, and you get 25 presets (15 FM, 10 AM).
What can I add to my USA-630 for a Mopar In Dash AM/FM order?
Add-ons offered here are a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), and an antenna (Hideaway Antenna and Power Antenna).
How does the USA-630 handle phone audio and connections?
Bluetooth streaming and hands-free calling come from Custom Autosound's optional BluKit, which works with the USA-630. It also has digital EQ, separate bass and treble, loudness, a 4-way fader and a 2-channel RCA auxiliary input with cable included.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras

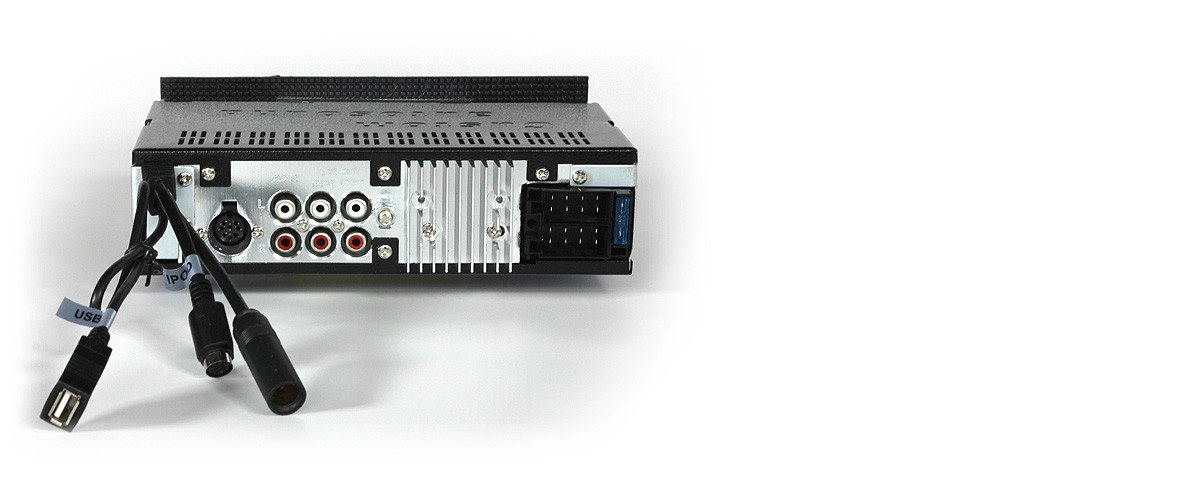

USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a classic Mopar
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for classic Mopar
- This radio is sold for the factory Mopar opening used in classic models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — classic Mopar USA-630
Will this fit my classic Mopar without cutting the dash?
It is built for the original radio opening used on classic Mopar models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
