Product Description

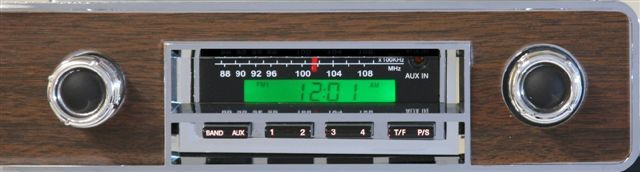

The 1968-69 Pontiac Tempest was the entry point to Pontiac's restyled A-body line. This KHE-300-USB with Bluetooth by Ken Harrison is the 1968-69 Tempest version, made to keep a classic look in the dash while adding modern features.
Fit and Ordering
This version is made for the 1968-69 Tempest dash. Contact us with your model before ordering to confirm fit.
Why This Model
The KHE-300 pairs old-school controls with new-school sources. Press a pushbutton for a favorite station, stream from your phone over Bluetooth, or load music onto a USB stick or mini SD card.
The Right Fit Matters
Vehicle-specific radios are designed around the dash they go into, so the controls line up and the face sits where the original did. That makes installation simpler and the finished result looks like it came from the factory.
Features
- LCD display with blue illumination and clock
- Auto antenna power lead, RCA pre-outs and rear auxiliary input
- 200 watts of output (50 watts x 4)
- Bluetooth wireless audio streaming
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner
- 6 AM and 6 FM presets on extended pushbuttons
- Manual up/down tuning, seek and auto scan
- Separate bass and treble controls and a 4-way fader
Build the System
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Hideaway antenna
Sound Shaping
Separate bass and treble controls and a 4-way fader let you set the sound for your cabin.
Choosing Add-Ons
If you are not sure which speakers or antenna to choose, tell us about your vehicle and how you use it. A car that is mostly cruised around town needs a different setup than one driven long distances, and we are happy to help you match the parts.
Electrical and Installation
The KHE-300 requires a 12-volt negative ground electrical system. A 6-volt or positive ground vehicle will need a converter, so check your system before ordering.
Most installs go smoothly when the wiring is in good shape. Inspect it first, add a fuse to the power lead and test the radio on the bench before mounting it. An auto radio specialist can install it for you if needed. Vintage Car Radio sells the radio and accessories but does not offer installation.
Room to Grow
The RCA pre-outs let you add an amplifier and subwoofer later without replacing the radio. Start with the radio and fresh speakers, then add power if you want more.
At Night
The blue illuminated LCD shows the clock or frequency and is easy to read after dark without being distracting.
KHE-300 for 1968-69 Tempest FAQ
Will it fit my 1968-69 Tempest?
This is the 1968-69 Tempest version. Contact us with your year to confirm fit.
Does it have Bluetooth?
Yes, for streaming music from your phone.
How many presets are there?
6 AM and 6 FM on extended pushbuttons.
Can I add a hideaway antenna?
Yes. It is offered on this page.
How much power does it have?
200 watts (50 watts x 4).
KHE-300 specifications
- Ken Harrison KHE-300 vehicle-specific classic car radio (fitment per listing title)
- Bluetooth wireless audio streaming (music streaming; not all listings advertise hands-free calling)
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner with automatic mono/stereo
- 6 AM and 6 FM presets; preset scan and auto store
- Manual up/down tuning, seek and auto scan
- Separate bass and treble; front/rear fader; left/right balance
- LCD display with blue illumination and clock
- Auto antenna power lead; RCA pre-outs; rear auxiliary input
- 200 watts system power (50 watts × 4 channels)
- 12 V negative-ground (6 V / positive-ground cars need a converter)
KHE-300 wiring and tech tips
Ken Harrison manuals recommend installation by an auto radio specialist if you are not comfortable with 12 V work.
- Confirm the vehicle is 12 V negative ground before connecting (use a converter for 6 V or positive-ground cars).
- Disconnect a battery terminal before wiring.
- Use a fused power source and a clean chassis ground.
- Bench-test the radio before final mounting when practical.
- Connect the antenna lead and the auto-antenna power wire only if your antenna is compatible.
- Match speaker polarity; do not short speaker leads to ground.
Application: 1968-69 Tempest (confirm fitment from the product title before install). Vintage Car Radio does not offer installation.
KHE-300 manuals
Use the Ken Harrison owner’s sheet packed with the radio for the official wiring diagram and controls. Additional classic-radio manuals are listed on our Manuals page when available.
Vintage Car Radio does not offer installation.
Warranty
Warranty coverage for Ken Harrison radios is handled per the manufacturer’s and seller’s published terms for your purchase. Contact Vintage Car Radio at 844-802-4499 or 574-226-6676 with your order number for assistance.
Vintage Car Radio does not offer installation.
FAQ — 1968-69 Tempest KHE-300
Will this fit my dash?
Ken Harrison radios are vehicle-specific. This listing is for 1968-69 Tempest as titled—compare your opening and faceplate to the photos.
Does Bluetooth include hands-free calling?
KHE-300 listings emphasize wireless audio streaming. Confirm calling support on the product page for your exact SKU.
Do you install?
No.
Need help?
844-802-4499 or 574-226-6676.
