Product Description
A three-point retractable seat belt is a big safety upgrade for a classic car, but the belt itself is only half the job. It has to be anchored with the right hardware at the floor and at the retractor. Seatbelt Planet Hardware Kit #1 is built specifically for one 3-point lap and shoulder retractable belt, so you have matched, correctly graded parts in one package instead of a coffee can of mismatched bolts.

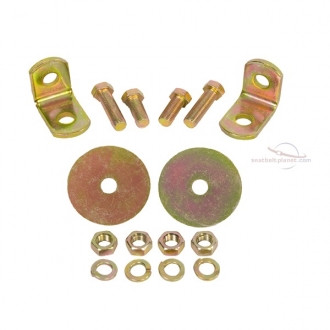

What Is in the Kit
Seatbelt Planet lists the contents of Kit #1 as:
- 2 x 7/16"-20 x 1" bolts
- 2 x 7/16"-20 x 1.5" bolts
- 4 x 7/16" hex nuts
- 4 x lock washers
- 2 x 2.5" reinforcement plates
- 2 x 1" angled floor brackets with a 90-degree angle
- Grade 5 strength hardware
The 7/16"-20 fine thread is the standard size for seat belt anchors, and Grade 5 hardware is a common strength rating for seat belt mounting. Seatbelt Planet notes that its hardware is engineered for seat belt use.
How the Parts Are Used
A typical 3-point retractable belt has a retractor end, a lap anchor end and a buckle. The angled floor brackets let you mount a retractor or end fitting so it sits at the right angle, which matters because retractors rely on their orientation to lock correctly. The reinforcement plates go on the underside of the floor to spread the load across a wider area of sheet metal, so a bolt cannot pull through thin metal in a crash. The two bolt lengths give you options for different stack-ups of bracket, belt fitting and floor thickness.
One Kit Per Belt
This kit is sized for a single 3-point retractable belt. If you are installing belts on both front seats, plan on two kits. Many Seatbelt Planet belts list "proper mounting hardware kits available", and Kit #1 is the match for their universal 3-point retractable belts.
When You Need It
- Your new belt does not include mounting hardware
- You are adding 3-point belts to a car that only had lap belts
- The original bolts are rusted, stretched or the wrong grade
- You are building a custom or hot rod interior with new anchor points
Installation Tips
Pick mounting points on solid, rust-free metal and check underneath before drilling so you do not hit brake lines, fuel lines or wiring. Mount the reinforcement plate on the far side of the panel, use a lock washer under each nut and tighten every bolt securely. Position the retractor at the angle its instructions call for and make sure the webbing feeds without twisting. Test the retractor with a sharp pull before driving. If you are not sure the floor is strong enough, have a qualified shop inspect it.
Using the correct hardware is one of the easiest ways to make sure a seat belt installation does its job. It is a small part of the project, but it is the part that holds everything together.
Hardware Kit #1: Frequently Asked Questions
What belt is Kit #1 for?
It is designed for one 3-point lap and shoulder retractable seat belt.
What is included?
Two 7/16-20 x 1-inch bolts, two 7/16-20 x 1.5-inch bolts, four hex nuts, four lock washers, two 2.5-inch reinforcement plates and two 1-inch 90-degree angled floor brackets.
What grade is the hardware?
Seatbelt Planet lists it as Grade 5 strength.
How many kits do I need?
One per 3-point belt, so two kits for both front seats.
Can I reuse my old bolts instead?
Only if they are the correct grade, thread and length and are in good condition. Many owners replace them for peace of mind.
Seatbelt Planet Hardware Kit #1 specifications
- Seatbelt Planet aftermarket seat belt / restraint product (application per listing title)
- Kit listing — see overview for which seating positions / belt count are included
- Tested and certified to meet FMVSS 209 and FMVSS 302 (certification tag on belts)
- Sold as aftermarket replacement — confirm buckle style, retractable vs fixed, and seat type before order
- Complete belts are preferred; mixing buckle/tongue brands is not recommended (components are designed to work together)
- 1-year manufacturer warranty for component issues from ship date (excludes abuse, accident damage, or disassembly)
- 90-day satisfaction guarantee per Seatbelt Planet (installed returns may incur restocking fee)
Installation Tips — Seatbelt Planet Hardware Kit #1
- Confirm this listing matches your vehicle (the vehicle application shown in the title), seat type (bench vs bucket), and buckle/retractor style before installing.
- Inspect mounting points for solid metal structure. Seatbelt Planet products are aftermarket — fabrication or adapters may be required on some vehicles.
- Use appropriate grade hardware. Some listings sell mounting hardware separately.
- Install a complete belt assembly when possible; do not mix unmatched buckle and tongue brands.
- After install, verify full extension, retraction (if applicable), and latching before driving.
- If unsure, use a professional installer. Improper installation can cause serious injury.
Selection help: Seatbelt Planet FAQ / guides at seatbeltplanet.com/faq.html · phone 405-736-0088.
Vintage Car Radio does not offer installation.
Seatbelt Planet Hardware Kit #1 manuals
- Seatbelt Planet FAQ (FMVSS, warranty, returns)
- Seatbelt Planet common questions / selection help
- Use any instruction sheet packed with your order for model-specific steps
Manufacturer: Seatbelt Planet · 405-736-0088
One-Year Seatbelt Planet Warranty
Per Seatbelt Planet, seat belts are covered under a one-year manufacturer warranty for component issues from the date shipped. Warranty returns are not accepted if there has been obvious abuse, the belt was involved in an accident, or the belt has been disassembled / components removed.
Seatbelt Planet also states a 90-day satisfaction guarantee; installed returns may be subject to a restocking fee. RMA required — contact Seatbelt Planet or Vintage Car Radio at 844-802-4499 / 574-226-6676.
Vintage Car Radio does not install seat belts.
FAQ — Seatbelt Planet Hardware Kit #1
Are these FMVSS / DOT approved?
Seatbelt Planet states belts are tested and certified to FMVSS 209 and 302; the certification tag is on the belt.
Can I replace only one side?
Seatbelt Planet recommends installing a complete belt — buckle and tongue are designed to work together.
Will this fit the vehicle application shown in the title?
Match the years, make/model, and seat position in the title. Call Seatbelt Planet at 405-736-0088 if you need a custom belt.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676, or Seatbelt Planet 405-736-0088.
