Product Description

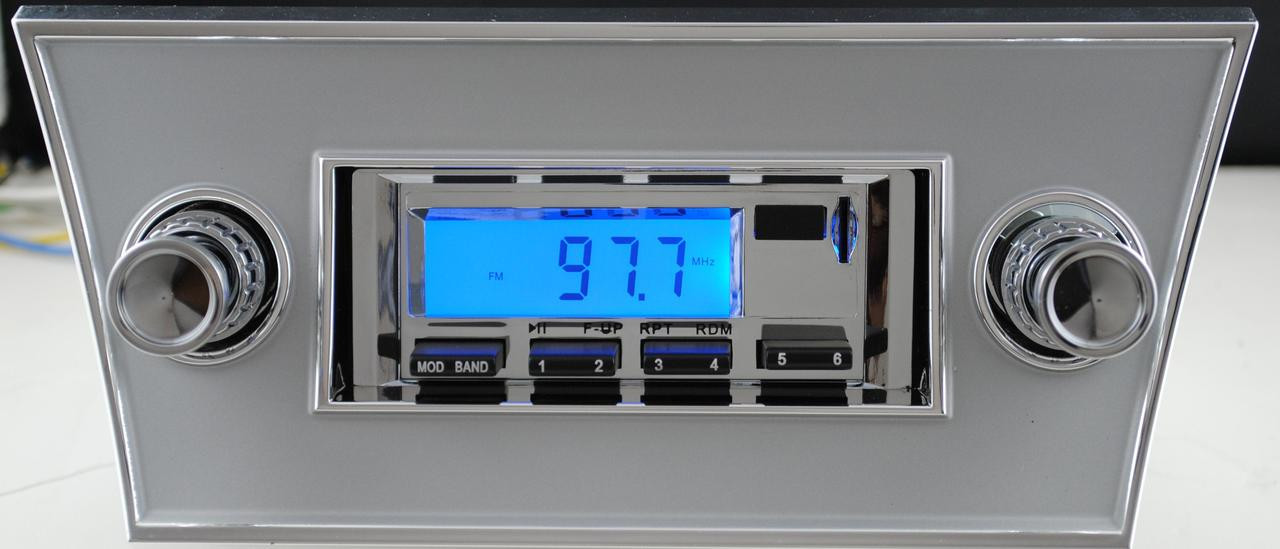

The 1966 Chevelle brought new styling to Chevy's popular A-body, and the SS 396 made it a muscle car icon. This KHE-300 by Ken Harrison is made for the 1966 Chevelle dash, combining a classic pushbutton look with Bluetooth, USB and SD card playback.
Designed for the 1966 Chevelle
This version of the KHE-300 is made to fit the factory radio opening of the 1966 Chevelle, so the dash stays uncut and the car keeps its original look. The extended-length preset buttons give it the feel of a classic pushbutton radio, and you can choose a black or chrome nose piece.
Features
- Bluetooth wireless audio streaming
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner
- 6 AM and 6 FM presets on extended pushbuttons
- Manual up/down tuning, seek and auto scan
- Separate bass and treble controls and a 4-way fader
- LCD display with blue illumination and clock
- Auto antenna power lead, RCA pre-outs and rear auxiliary input
- 200 watts of output (50 watts x 4)
The blue-lit LCD is easy to read day or night, and the PLL tuner holds stations far more steadily than an original radio.
Music Your Way
Pair a phone over Bluetooth to stream music, plug a USB stick into the front port, or slide a mini SD card into the built-in reader. The rear auxiliary input handles wired devices, and the RCA pre-outs let you add an amplifier or subwoofer later.
Options on This Page
- Front dual voice coil speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Hideaway antenna
Kick panels are a popular way to add front stereo speakers to a Chevelle without cutting the doors, and rear 6x9s fill out the sound.
Before You Install
The KHE-300 requires a 12-volt negative ground electrical system. Check the wiring behind the dash, use a fused power source and make a clean ground. An auto radio specialist can install the radio if you prefer. Vintage Car Radio sells the radio and accessories but does not offer installation.
A Note on Features
The KHE-300 is a digital radio with USB, SD and Bluetooth. It does not include a cassette player. If you need to confirm a specific feature before ordering, contact us.
Black or Chrome Nose Piece
The KHE-300 is available with a black or chrome nose piece, adding a smooth finishing touch to the classic look. Chrome pairs well with the bright trim of a 1966 Chevelle dash, while black gives a more subtle appearance. Either way, the radio looks at home in a mid-1960s GM interior.
KHE-300 for 1966 Chevelle FAQ
Will it fit my 1966 Chevelle without cutting?
Yes. This version is made for the 1966 Chevelle factory radio opening.
How do the presets work?
It stores 6 AM and 6 FM stations on extended-length pushbuttons.
Can I stream from my phone?
Yes. Bluetooth streaming is built in.
Does it play tapes?
No. It plays USB, SD card, Bluetooth and auxiliary sources.
Can I add kick panels?
Yes, with speakers, without speakers or with a Pioneer upgrade.
KHE-300 specifications
- Ken Harrison KHE-300 vehicle-specific classic car radio (fitment per listing title)
- Bluetooth wireless audio streaming (music streaming; not all listings advertise hands-free calling)
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner with automatic mono/stereo
- 6 AM and 6 FM presets; preset scan and auto store
- Manual up/down tuning, seek and auto scan
- Separate bass and treble; front/rear fader; left/right balance
- LCD display with blue illumination and clock
- Auto antenna power lead; RCA pre-outs; rear auxiliary input
- 200 watts system power (50 watts × 4 channels)
- 12 V negative-ground (6 V / positive-ground cars need a converter)
KHE-300 wiring and tech tips
Ken Harrison manuals recommend installation by an auto radio specialist if you are not comfortable with 12 V work.
- Confirm the vehicle is 12 V negative ground before connecting (use a converter for 6 V or positive-ground cars).
- Disconnect a battery terminal before wiring.
- Use a fused power source and a clean chassis ground.
- Bench-test the radio before final mounting when practical.
- Connect the antenna lead and the auto-antenna power wire only if your antenna is compatible.
- Match speaker polarity; do not short speaker leads to ground.
Application: 1966 Chevelle (confirm fitment from the product title before install). Vintage Car Radio does not offer installation.
KHE-300 manuals
Use the Ken Harrison owner’s sheet packed with the radio for the official wiring diagram and controls. Additional classic-radio manuals are listed on our Manuals page when available.
Vintage Car Radio does not offer installation.
Warranty
Warranty coverage for Ken Harrison radios is handled per the manufacturer’s and seller’s published terms for your purchase. Contact Vintage Car Radio at 844-802-4499 or 574-226-6676 with your order number for assistance.
Vintage Car Radio does not offer installation.
FAQ — 1966 Chevelle KHE-300
Will this fit my dash?
Ken Harrison radios are vehicle-specific. This listing is for 1966 Chevelle as titled—compare your opening and faceplate to the photos.
Does Bluetooth include hands-free calling?
KHE-300 listings emphasize wireless audio streaming. Confirm calling support on the product page for your exact SKU.
Do you install?
No.
Need help?
844-802-4499 or 574-226-6676.
