Product Description

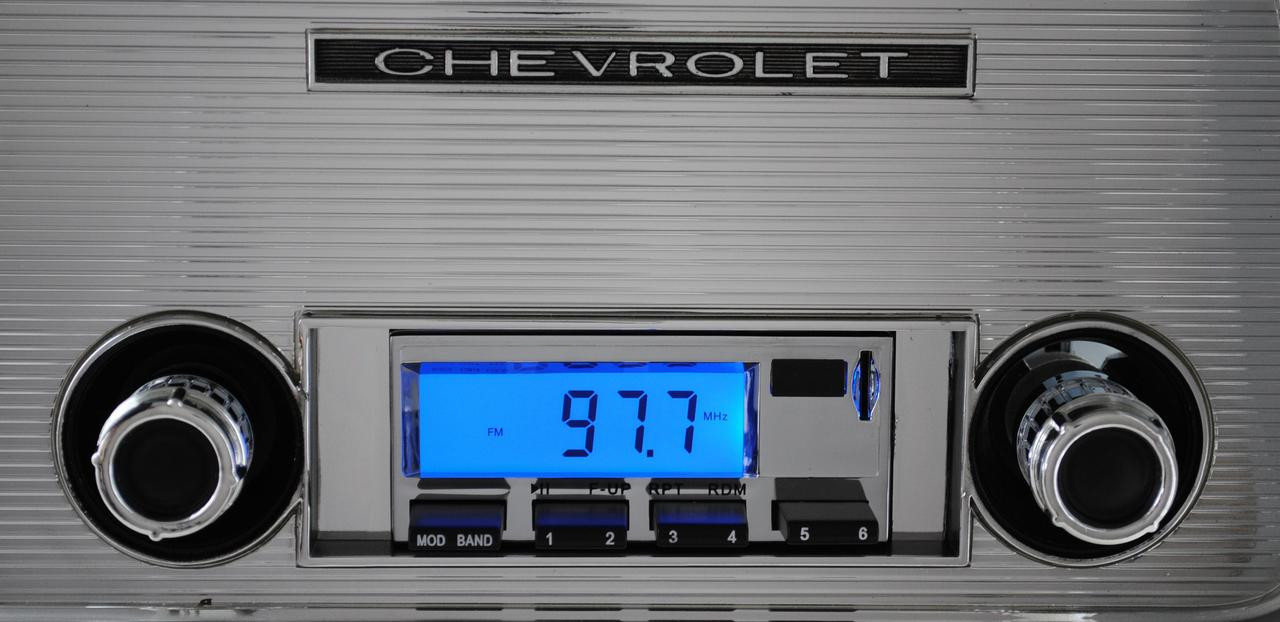

The 1964-65 Chevelle launched Chevy's legendary A-body line, and the SS versions became muscle car favorites. This KHE-300-USB by Ken Harrison is custom designed for the 1964-65 Chevelle dash, combining pushbutton presets with Bluetooth, USB and SD card playback.
Fit and Ordering
This version is made for the 1964-65 Chevelle factory dash, so it fits without cutting.
What Makes It Different
Ken Harrison designed the KHE-300 to give classic cars modern sources while keeping a period look. The extended preset buttons work like an old pushbutton radio, and the blue-lit LCD shows the clock and frequency clearly.
Keeping the Dash Original
The dash is one of the first things people notice in a classic. A radio built to fit the factory opening keeps it looking right, protects the value of the car and avoids permanent changes, while still giving you the convenience of modern sources.
Feature List
- 200 watts of output (50 watts x 4)
- Bluetooth wireless audio streaming
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner
- 6 AM and 6 FM presets on extended pushbuttons
- Manual up/down tuning, seek and auto scan
- Separate bass and treble controls and a 4-way fader
- LCD display with blue illumination and clock
- Auto antenna power lead, RCA pre-outs and rear auxiliary input
Complete Your Order
- Front dual voice coil speaker, which plays both stereo channels through a single dash speaker
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Hideaway antenna
Kick Panels for the Chevelle
This listing also offers kick panels with speakers, without speakers or with a Pioneer upgrade. Kick panels are a popular way to add front stereo speakers to an early Chevelle without cutting the doors, and they pair well with a rear 6x9 set.
Getting the Best Sound
Start with fresh speakers and good wiring. Old paper cones and corroded connections hold back even a great radio. Set the bass and treble modestly at first, then adjust for your cabin; open cars and trucks usually need a little more bass than closed coupes and sedans.
Before You Install
The KHE-300 requires a 12-volt negative ground electrical system. A 6-volt or positive ground vehicle will need a converter, so check your system before ordering.
Disconnect the battery before you start, check the old wiring behind the dash for brittle insulation and use a fused feed with a solid chassis ground. A qualified auto sound shop can handle the job if you prefer. Vintage Car Radio sells the radio and accessories but does not offer installation.
Rear Speakers
A rear 6x9 pair, Custom Autosound or upgraded Pioneer, fills in the back of the Chevelle cabin and works with the radio's 4-way fader.
KHE-300-USB for 1964-65 Chevelle FAQ
Will it fit my 1964-65 Chevelle?
Yes. This version is made for the 1964-65 Chevelle dash.
Can I add kick panels?
Yes, with speakers, without speakers or with a Pioneer upgrade.
Does it have Bluetooth?
Yes, for wireless streaming.
How many presets are there?
6 AM and 6 FM.
How much power does it have?
200 watts (50 watts x 4).
KHE-300 specifications
- Ken Harrison KHE-300 vehicle-specific classic car radio (fitment per listing title)
- Bluetooth wireless audio streaming (music streaming; not all listings advertise hands-free calling)
- Front USB input for MP3 files
- Front mini SD card reader
- PLL synthesized AM/FM tuner with automatic mono/stereo
- 6 AM and 6 FM presets; preset scan and auto store
- Manual up/down tuning, seek and auto scan
- Separate bass and treble; front/rear fader; left/right balance
- LCD display with blue illumination and clock
- Auto antenna power lead; RCA pre-outs; rear auxiliary input
- 200 watts system power (50 watts × 4 channels)
- 12 V negative-ground (6 V / positive-ground cars need a converter)
KHE-300 wiring and tech tips
Ken Harrison manuals recommend installation by an auto radio specialist if you are not comfortable with 12 V work.
- Confirm the vehicle is 12 V negative ground before connecting (use a converter for 6 V or positive-ground cars).
- Disconnect a battery terminal before wiring.
- Use a fused power source and a clean chassis ground.
- Bench-test the radio before final mounting when practical.
- Connect the antenna lead and the auto-antenna power wire only if your antenna is compatible.
- Match speaker polarity; do not short speaker leads to ground.
Application: 1964-65 Chevelle (confirm fitment from the product title before install). Vintage Car Radio does not offer installation.
KHE-300 manuals
Use the Ken Harrison owner’s sheet packed with the radio for the official wiring diagram and controls. Additional classic-radio manuals are listed on our Manuals page when available.
Vintage Car Radio does not offer installation.
Warranty
Warranty coverage for Ken Harrison radios is handled per the manufacturer’s and seller’s published terms for your purchase. Contact Vintage Car Radio at 844-802-4499 or 574-226-6676 with your order number for assistance.
Vintage Car Radio does not offer installation.
FAQ — 1964-65 Chevelle KHE-300
Will this fit my dash?
Ken Harrison radios are vehicle-specific. This listing is for 1964-65 Chevelle as titled—compare your opening and faceplate to the photos.
Does Bluetooth include hands-free calling?
KHE-300 listings emphasize wireless audio streaming. Confirm calling support on the product page for your exact SKU.
Do you install?
No.
Need help?
844-802-4499 or 574-226-6676.
Specs
Wiring / Tech Tips
Manuals
Warranty
Warranty
Warranty coverage for Ken Harrison radios is handled per the manufacturer’s and seller’s published terms for your purchase. Contact Vintage Car Radio at 844-802-4499 or 574-226-6676 with your order number for assistance.
Vintage Car Radio does not offer installation.
