Product Description

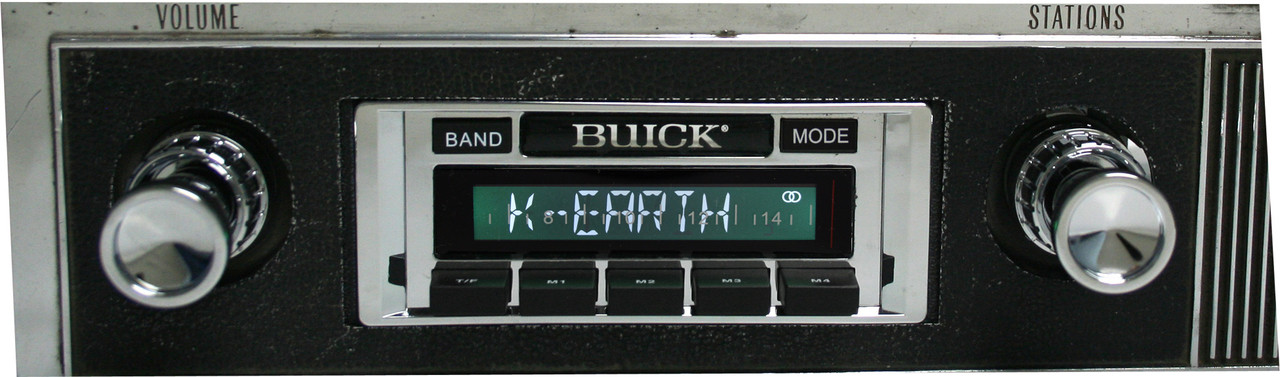

Custom Autosound is always working toward the perfect classic car radio, and the USA-630 for the 1957-58 Buick Special is the result. Its signature knobs add to its look and to the appeal of your dash. The radio blends classic looks with modern features, including an iPod dock. You can use the radio's controls to browse artists, playlists, albums and songs on your iPod.
That means you can keep your iPod tucked away in the glove box. You can also play WMA and MP3 files by plugging a USB flash drive into the USB port. The alphanumeric display shows the artist, song and album title when you play music from a flash drive or iPod, plus RDS station information.
With the optional BluKit, you can stream audio from a Bluetooth smartphone or player, and use the radio's track-up button to skip songs on your device. When a call comes in, the music mutes so you can take the call hands-free. The USA-630 has 300 watts peak, enough to fill your car at full volume.
| Features
|
1957-58 Buick Special USA-630 In Dash AM/FM FAQ
Is this radio made specifically for the 1957-58 Buick Special?
This version is built for the 1957-58 Buick Special and is made to fit the factory radio opening. Custom Autosound says its radios fit without altering or cutting the original dash.
Will it keep the stock look of my 1957-58 Buick Special dash?
Yes. It's built to keep the original look in the 1957-58 Buick Special dash while adding modern features.
Will it work with a 6-volt system?
Choose your system under Voltage (12 volt and 6 volt) and Ground (Negative and Positive) when you order.
Can I add a CD player or Bluetooth?
Check the CD options on this page, which include Single Slave CD and Bluetooth Adapter.
Why does the order ask about factory air?
The Factory Air option tells us which dash layout your 1957-58 Buick Special has, so pick Yes if it has factory A/C.
Can I buy speakers and an antenna at the same time?
Add-ons offered here are a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), kick panels (W/Speakers, W/O Speakers, and Pioneer Upgrade), and a hideaway antenna.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a 1957-1958 Buick Special
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1957-1958 Buick Special
- This radio is sold for the factory Buick Special opening used in 1957-1958 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1957-1958 Buick Special USA-630
Will this fit my 1957-1958 Buick Special without cutting the dash?
It is built for the original radio opening used on 1957-1958 Buick Special models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
