Product Description

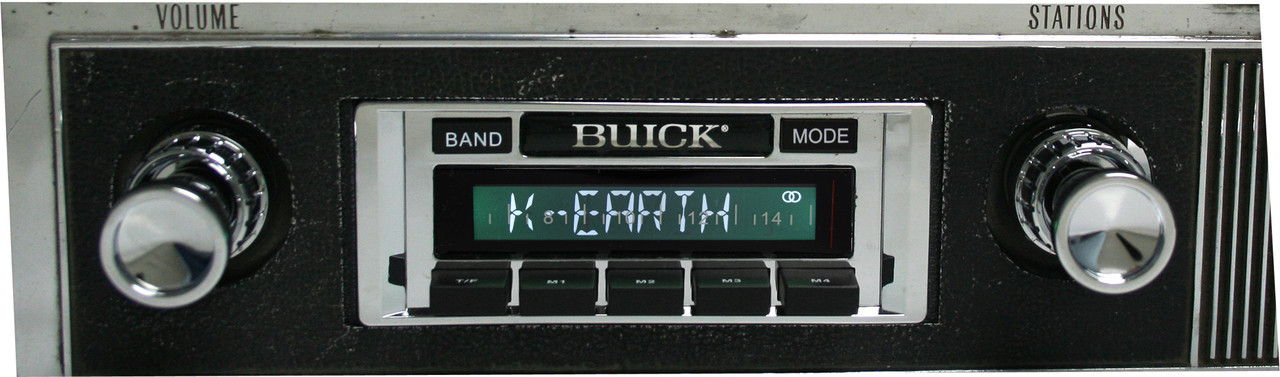

USA-630 for the 1959-67 Buick Electra
The Custom Autosound USA-630 for the 1959-67 Buick Electra is fast becoming the top choice for vintage car owners, with features you'd expect only from the latest stereos. It changes the old idea that a classic radio can't offer modern conveniences. Stream music from a Bluetooth player with the optional BluKit, which also lets you take hands-free calls while the music mutes automatically, and tune in American or European stations at the press of a button.
Not Just by Driving the Buick Electra
...but by installing the perfect radio for its fine lines, powerful engine and smooth ride. With the right radio, you can enjoy great music, talk radio and more.
To match the style of your 1959-67 Buick Electra, let the Custom Autosound USA-630 deliver your audio. When you drive a top classic, second best won't do.
A Big Radio for a Big Car
That's the USA-630. It puts out 300 watts of power for the sound you want, and it plays MP3 and WMA files and controls up to 6 CDs, so you can enjoy concerts, audiobooks and more.
That's not all. You get 16 AM/FM presets (12 FM, 4 AM) on the RDS tuner, which displays song and artist names, plus a digital clock.
A power antenna lead helps bring in a clear signal so you don't miss a word or a note, and volume, bass and treble controls plus a digital EQ let you fine-tune your sound.
There are too many features to list. The USA-630 is simply a big radio that brings style to your classic Electra.
You Need a Big Radio
...because the Buick Electra is a big car with lots of space to fill, and the USA-630 fills it with top-quality sound.
| Features
|
Frequently Asked Questions About the 1959-67 Buick Electra USA-630 In Dash AM/FM
Will this fit my car?
In our year/make/model search it's listed for the 1959-1967 Buick and 1959-1967 Buick Electra. Use the vehicle search to confirm your exact car.
Is there a CD or Bluetooth upgrade?
Check the CD options on this page, which include Single Slave CD and Bluetooth Adapter.
What if my 1959-67 Buick Electra has air conditioning?
The Factory Air option tells us which dash layout your 1959-67 Buick Electra has, so pick Yes if it has factory A/C.
Can I buy speakers and an antenna at the same time?
Add-ons offered here are a front dual voice coil speaker, a rear 6x9 speaker pair (Custom Autosound 6x9 Speaker Pair and Upgraded Pioneer Speaker Pair), and a hideaway antenna.
What else should I know about the USA-630?
A USB port plays MP3 and WMA files from a flash drive, and the display shows artist and song titles. Custom Autosound rates it at 300 watts peak (45 watts RMS x 4), with four RCA pre-outs for adding amplifiers.
What about older positive-ground electrical systems?
The order form has Voltage (6 and 12) and Ground (Positive and Negative) options, so set them to match your 1959-67 Buick Electra.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a 1959-1967 Electra
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1959-1967 Electra
- This radio is sold for the factory Electra opening used in 1959-1967 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1959-1967 Electra USA-630
Will this fit my 1959-1967 Electra without cutting the dash?
It is built for the original radio opening used on 1959-1967 Electra models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
