Product Description

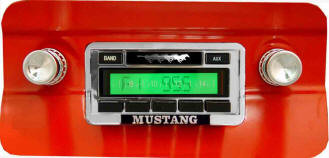

The first Mustangs, from the 1964-1/2 launch through 1966, started the pony car era, and they remain some of the most popular classics to restore and drive. The Custom Autosound USA-230 for the 1964.5-66 Mustang fits the factory dash opening and adds modern AM/FM plus an auxiliary input.
Fits the Early Mustang Dash
This version is made for 1964-1/2 to 1966 Mustangs, so it lines up with the original radio opening. The order form asks for:
- Factory Air: Yes or No
- Voltage: 6 or 12
- Ground: Negative or Positive
Factory air changes the space behind the dash, so that answer helps us send the right setup. The radio itself runs on 12-volt negative ground.
USA-230 at a Glance
- Black or chrome face
- AM/FM stereo with an electronic tuner
- 16 presets (12 FM and 4 AM)
- 200 watts (50 watts x 4)
- Rear RCA auxiliary input, with an RCA to 1/8" pin jack cable included
- 4-channel RCA pre-outs
- 4-way fader
- Digital clock
- Power antenna lead
The USA-230 has the same styling as the USA-630 without USB or CD changer control. There's no cassette, but the rear auxiliary input works with a phone, MP3 player or satellite radio tuner.
Speakers, Kick Panels and Antenna
Add any of these to your order:
- Front dual voice coil speaker for the dash location
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Hideaway antenna
Kick panels are one of the most popular upgrades for early Mustangs because they add front speakers without cutting the doors.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
A Good Fit for a Driver
Early Mustangs are meant to be driven. With 50 watts per channel, 16 presets and pre-outs for an amplifier, the USA-230 gives you everything you need for regular cruising, while the face keeps the dash looking like a 1960s Ford.
Before You Install
Use a fused power source and solid ground, and bench test first. An auto radio specialist can install it if you prefer. Vintage Car Radio sells the radio and accessories but does not offer installation.
Pick Your Face
The USA-230 comes with a black or chrome face. Many early Mustang owners choose chrome to match the bright trim of the dash, while black suits Pony interiors and darker dashes. Either choice gives you a clear digital display, a clock and 16 presets, all in a radio that looks at home in a first-generation Mustang.
Custom Autosound 1964.5-66 Mustang USA-230 FAQ
Will it fit my 1965 Mustang?
Yes. This version is made for 1964-1/2 to 1966 Mustangs.
Why does the order ask about factory air?
Air conditioning affects the space behind the dash, so we use your answer to send the correct setup.
Can I add kick panels?
Yes, with speakers, without speakers or with a Pioneer upgrade.
Does it have USB?
No. It has a rear auxiliary input with an included cable.
What is the warranty?
Custom Autosound radios carry a 2-year warranty.
USA-230 specifications
- 200 watts peak power (50W x 4)
- AM/FM stereo tuner
- RCA auxiliary input
- 12 FM and 4 AM presets
- Electronic tuning and volume
- 4-channel RCA pre-outs for an external amplifier
- Separate bass and treble controls
- 4-way fader and left/right balance
- Power antenna lead
- Designed for original classic dash openings (no DIN cut required for vehicle-specific faceplates)
- Custom Autosound 2-year manufacturer warranty
USA-230 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-230 extras
Use the rear RCA AUX for a wired player. Pre-outs support adding an amplifier later without replacing the radio.
Suggested order for a 1964-66 Mustang
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1964-66 Mustang
- This radio is sold for the factory Mustang opening used in 1964-66 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-230 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1964-66 Mustang USA-230
Will this fit my 1964-66 Mustang without cutting the dash?
It is built for the original radio opening used on 1964-66 Mustang models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately). The USA-230 is a wired/AUX-focused radio without built-in Bluetooth.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
