Product Description

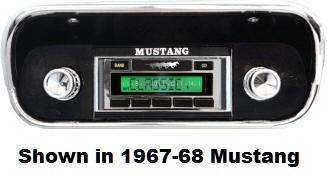

The Custom Autosound USA-630 for the 1967-73 Mustang brings modern music sources into the original dash while keeping the look of a period radio. It is built to fit the factory radio opening without cutting the dash, and its large OEM-style pushbuttons and Mustang-specific bezel let it blend into the instrument panel instead of standing out like a modern head unit. For owners who want the car to look original but still play music from a phone or flash drive, it is one of the best-known classic car radios made.
Built for the 1967-73 Mustang
Mustang dashes changed several times between 1967 and 1973, and the order form on this page asks for your Year, Make and Model and whether the car has Factory Air so the correct version is sent. If your dash has been modified or you are not sure which version you have, contact us before ordering and we will help you confirm it.
USA-630 Features
- AM/FM stereo with an RDS tuner that shows station, song and artist
- 300 watts peak (45 watts RMS x 4 per Custom Autosound's manual)
- USB input for MP3 and WMA playback from a flash drive
- iPod dock and control from the radio's buttons
- Direct control of Custom Autosound's optional CD-1 player
- Negative LCD display with white characters on a black background
- Alphanumeric display for USB and iPod track information
- Electronic tuning and volume, loudness compensation and digital EQ
- Separate bass and treble, 4-way fader and left/right balance
- 16 presets (12 FM, 4 AM) and a digital clock
- 2-channel RCA auxiliary input, cable included
- 4-channel RCA pre-outs, USA/Euro tuner and power antenna lead
Music From Your Devices
A flash drive in the USB input can hold hours of music, and the display shows the file information as it plays. An iPod can stay hidden in the glove box or console while you browse it from the radio's buttons. The rear auxiliary input accepts a phone, a satellite radio tuner or any portable player. For wireless streaming, choose the Bluetooth Adapter in the CD/Bluetooth menu. Custom Autosound's BluKit adds Bluetooth music and hands-free calling, with the music muting automatically when a call comes in. If you would rather play discs, the same menu offers the Single Slave CD player.
Options on This Page
- CD/Bluetooth: Single Slave CD or Bluetooth Adapter
- Voltage (12 volt or 6 volt) and Ground (negative or positive) to match your car
- Kick panels with speakers, without speakers or with a Pioneer upgrade
- Front dual voice coil speaker
- Hideaway antenna
- Rear 6x9 speaker pair, Custom Autosound or upgraded Pioneer
Speakers and Power
Many Mustangs left the factory with a single dash speaker. A dual voice coil speaker plays both stereo channels from that one location, and kick panels or a rear 6x9 pair spread the sound through the cabin. The four RCA pre-outs make it easy to add an amplifier or subwoofer later without replacing the radio.
Installation
The USA-630 is designed to bolt into the stock opening with no cutting. Most owners or their installer can handle it with basic tools. Disconnect the battery first, check the grounds, and test the radio before the dash goes back together.
Warranty
Custom Autosound radios sold by Vintage Car Radio carry a 2-year warranty.
1967-73 Mustang USA-630 FAQ
Do I have to cut my Mustang's dash?
No. This version is made for the factory radio opening, and Custom Autosound says its radios fit without cutting.
Can I add Bluetooth?
Yes. Choose the Bluetooth Adapter in the CD/Bluetooth menu for streaming and hands-free calls.
Will it work in a 6-volt or positive ground car?
Choose your Voltage and Ground settings when you order so the correct setup is sent.
How many presets does it have?
16, with 12 FM and 4 AM.
What is the warranty?
2 years from Custom Autosound.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a 1967-73 Mustang
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1967-73 Mustang
- This radio is sold for the factory Mustang opening used in 1967-73 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1967-73 Mustang USA-630
Will this fit my 1967-73 Mustang without cutting the dash?
It is built for the original radio opening used on 1967-73 Mustang models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately). The USA-230 is a wired/AUX-focused radio without built-in Bluetooth.
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
