Product Description
The Custom Autosound USA-630 for the 1954-56 Buick Super is fast becoming a top choice of classic car owners. It keeps a retro look but performs far beyond older radios. It plays song files from your devices in different formats, and with the optional BluKit, it streams music from Bluetooth devices and mutes the music automatically for hands-free calls. It's an ideal companion for long drives. Its features include:
| Features
|
Common Questions About the 1954-56 Buick Super USA-630 In Dash AM/FM
Will this fit my car?
Our vehicle search lists it for the 1954-1956 Buick and 1956 Buick Roadmaster. Use the vehicle search to confirm your exact car.
Is there a CD or Bluetooth upgrade?
Check the CD options on this page, which include Single Slave CD and Bluetooth Adapter.
What can the USA-630 do?
It can directly control Custom Autosound's optional CD-1 player. The RDS tuner shows station, song and artist information, and you get 16 presets (12 FM, 4 AM).
Does it matter if my 1954-56 Buick Super has factory air?
The Factory Air option tells us which dash layout your 1954-56 Buick Super has, so pick Yes if it has factory A/C.
What do I get with the USA-630 in my 1954-56 Buick Super?
Custom Autosound rates it at 300 watts peak (45 watts RMS x 4), with four RCA pre-outs for adding amplifiers. It also has digital EQ, separate bass and treble, loudness, a 4-way fader and a 2-channel RCA auxiliary input with cable included.

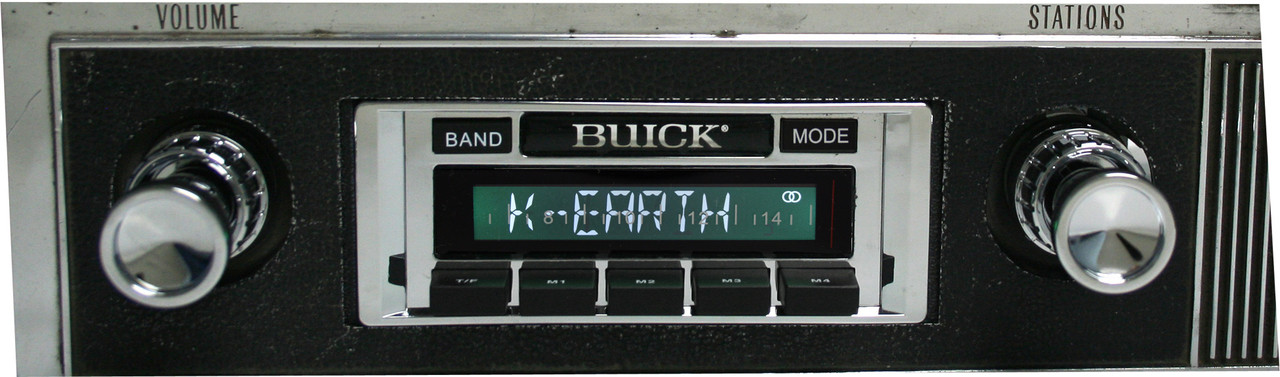

Does it look like the original radio?
The 1954-56 Buick Super USA-630 In Dash AM/FM is styled to look like the factory radio, so your dash keeps its period appearance.
USA-630 specifications
- 300 watts peak power (45W x 4 RMS)
- AM/FM stereo tuner
- USB port for flash-drive playback (MP3/WMA/FLAC/WAV)
- Optional Bluetooth via BluKit add-on (sold separately)
- RCA auxiliary input (rear)
- Direct control for optional CD-1 changer
- 4-channel 5V RCA pre-outs
- Digital clock
- 7-color LCD display with dimmer
- Alphanumeric display for USB/iPod/RDS info
- Separate bass and treble; 4-way fader; L/R balance
- 25 presets (15 FM / 10 AM)
- Loudness compensation
- Power antenna lead
- USA/EURO/JAP/AUS/RUS tuner capability
- Custom Autosound 2-year manufacturer warranty
USA-630 wiring and tech tips
Use this as a head-unit reference for power, ground, antenna, speakers, and amplifier connections. Always match the printed diagram that ships with your unit if it differs.
Power and ground (typical Custom Autosound harness)
| Function | Wire color |
|---|---|
| Ignition / ACC +12V | Red |
| Battery / constant +12V | Yellow |
| Ground | Black |
| Power antenna | Blue |
Ignition and power-antenna leads are commonly fused at 1A on the harness—confirm against the guide that ships with your radio.
Speaker wiring (typical)
| Speaker | Wire color |
|---|---|
| Left front + / − | White / White-Black |
| Right front + / − | Gray / Gray-Black |
| Left rear + / − | Green / Green-Black |
| Right rear + / − | Violet (or Purple) / Violet-Black |
USA-630 extras
USB and iPod/dock leads share a cable near the antenna jack on many units. RCA jacks on top are typically labeled AUX IN, REAR, and FRONT (line out). Bluetooth requires the optional BluKit unless your package already includes it.
Suggested order for a 1954-1956 Buick Super
- Disconnect the vehicle battery before any wiring.
- Connect ground first, then constant (yellow) and ignition (red).
- Connect the antenna plug and the blue power-antenna lead if your car has a power antenna.
- Wire all four speakers, matching polarity.
- If using an amplifier, run RCA cables from the front/rear (and sub on USA-740/USA-850) pre-outs.
- Reconnect the battery and test radio, speakers, and charging system voltage.
Tech tips for 1954-1956 Buick Super
- This radio is sold for the factory Buick Super opening used in 1954-1956 models—do not cut a modern DIN rectangle if you want a stock look.
- A poor ground is the most common cause of whine or weak audio; scrape paint at the ground point and use a star washer.
- If AM reception is weak, check the antenna mast, cable continuity, and that the antenna plug is fully seated.
- Vintage Car Radio does not install radios. If you are not comfortable with 12V wiring, use a qualified installer.
USA-630 manuals
Download the manufacturer guide for operation, safety, and the official wiring diagram. You can also browse our full library on the Manuals page.
Vintage Car Radio does not offer installation. The manuals are for do-it-yourself reference or to share with your installer.
Two-Year Custom Autosound Warranty
All Custom Autosound radios sold by Vintage Car Radio are backed by a 2-year manufacturer warranty from Custom Autosound.
Radios are checked before shipping. If something is wrong out of the box or under warranty, call us at 844-802-4499 or 574-226-6676 and we will help coordinate with the manufacturer.
Vintage Car Radio does not offer installation services. Refer to the Manuals and Wiring / Tech Tips sections for manufacturer guidance, or use a qualified car-audio installer.
FAQ — 1954-1956 Buick Super USA-630
Will this fit my 1954-1956 Buick Super without cutting the dash?
It is built for the original radio opening used on 1954-1956 Buick Super models. Compare your dash opening and bezel to the product photos. We do not modify dashes in-house.
Does this radio have Bluetooth?
The USA-630 supports Bluetooth with the optional BluKit add-on (sold separately).
Do I need an amplifier?
Many owners run speakers directly from the radio. Pre-outs are there if you want more volume or a subwoofer later.
Do you install the radio?
No. Vintage Car Radio ships the unit and documentation; installation is DIY or by a shop you choose.
What is the warranty?
Custom Autosound radios include a 2-year manufacturer warranty. See the Warranty section for details.
Need help?
Call 844-802-4499 or 574-226-6676.
