Product Description

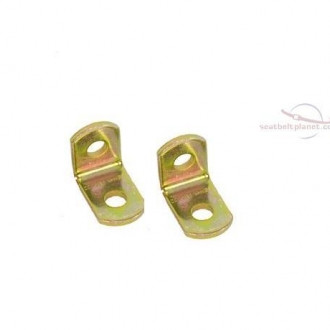

A seat belt's end fitting needs to sit flat and pull in the right direction. When the anchor point is on a vertical surface, close to a corner or at an angle that puts the belt end in a bind, a short angled bracket solves the problem. The Seatbelt Planet Mounting Angle Brackets come as a set of two and are among the most useful small parts for custom and classic belt installations.
Specifications
Seatbelt Planet describes these as 1" 90-degree seat belt mounting brackets. The key dimensions are:
- Angle: 90 degrees
- Short side: 1 inch from the center of the hole to the angle
- Long side: 1.5 inches
- Hole size: 0.50 inch
- Sold as a set of 2
The compact size makes these brackets easy to fit in tight spaces, such as against a seat riser, inner rocker or wheel tub, where a longer bracket would not fit.
What They Are Used For
The 90-degree shape lets you bolt the bracket to one surface and attach the belt to the other. Common uses include:
- Turning a vertical anchor point into a horizontal one, or the other way around
- Mounting a retractor or belt end fitting to a floor where the stock anchor faces the wrong way
- Positioning the belt so it pulls straight rather than twisting the end fitting
- Adding anchor points in custom builds, hot rods and resto-mods
Because they come in pairs, you can mount both sides of a seat the same way and keep the installation symmetrical.
Ordering More Than One Set
If you are installing belts in more than one seating position, use the quantity menu to order up to four sets at once. That works well for front and rear seats, or for a project where both the lap and shoulder anchors need adapting.
Choosing the Right Hardware
The 0.50 inch holes accept the larger bolts used for seat belt installations. Use bolts of the correct grade and thread for seat belt use, along with lock washers or locking nuts, and back thin sheet metal with a reinforcement plate. Factory bolts can sometimes be reused, but only if they are the right length and in good condition. Many installs are easier with a matching hardware kit.
Fitting Tips
Dry-fit the bracket and belt before tightening anything. Sit in the seat and buckle up to check that the belt lies across the hips and the end fitting can move as intended. Make sure the bracket does not rest against wiring, brake or fuel lines, or sharp trim edges. The mounting surface must be solid metal. If the floor or panel shows rust or damage, repair it first. Tighten every bolt securely and recheck after a short drive.
If you are not confident about the strength of a mounting location, ask a qualified shop to inspect it. A well-chosen bracket helps a belt sit correctly, but it relies on a solid anchor.
Small Part, Big Difference
Brackets rarely get much attention, but they can make an awkward installation feel factory. Getting the angle right improves comfort, keeps the webbing from twisting and lets the belt work as designed.
Mounting Angle Brackets (Set of 2) FAQ
How many brackets are in the set?
Two brackets per set. Use the quantity menu to order up to four sets.
What are the dimensions?
Each is a 90-degree bracket measuring 1 inch from hole center to the angle on the short side and 1.5 inches on the long side, with 0.50 inch holes.
Do they come with bolts?
No hardware is listed with these brackets, so plan on proper seat belt bolts and reinforcement plates where needed.
Will they work with Seatbelt Planet belts?
Yes. Match the bolt size and grade to the belt end fittings you are installing.
Can I reuse factory bolts?
Only if they are the correct grade and length for the new combination of bracket and belt.
Seatbelt Planet Mounting Angle Brackets (Set of 2) specifications
- Seatbelt Planet mounting bracket / hardware accessory as titled
- Used with compatible Seatbelt Planet belts — confirm bolt size and bend style from the product page
- Follow any hardware notes packed with the part
Installation Tips — Seatbelt Planet Mounting Angle Brackets (Set of 2)
- Confirm this listing matches your vehicle (the vehicle application shown in the title), seat type (bench vs bucket), and buckle/retractor style before installing.
- Inspect mounting points for solid metal structure. Seatbelt Planet products are aftermarket — fabrication or adapters may be required on some vehicles.
- Use appropriate grade hardware. Some listings sell mounting hardware separately.
- Install a complete belt assembly when possible; do not mix unmatched buckle and tongue brands.
- After install, verify full extension, retraction (if applicable), and latching before driving.
- If unsure, use a professional installer. Improper installation can cause serious injury.
Selection help: Seatbelt Planet FAQ / guides at seatbeltplanet.com/faq.html · phone 405-736-0088.
Vintage Car Radio does not offer installation.
Seatbelt Planet Mounting Angle Brackets (Set of 2) manuals
- Seatbelt Planet FAQ (FMVSS, warranty, returns)
- Seatbelt Planet common questions / selection help
- Use any instruction sheet packed with your order for model-specific steps
Manufacturer: Seatbelt Planet · 405-736-0088
One-Year Seatbelt Planet Warranty
Per Seatbelt Planet, seat belts are covered under a one-year manufacturer warranty for component issues from the date shipped. Warranty returns are not accepted if there has been obvious abuse, the belt was involved in an accident, or the belt has been disassembled / components removed.
Seatbelt Planet also states a 90-day satisfaction guarantee; installed returns may be subject to a restocking fee. RMA required — contact Seatbelt Planet or Vintage Car Radio at 844-802-4499 / 574-226-6676.
Vintage Car Radio does not install seat belts.
FAQ — Seatbelt Planet Mounting Angle Brackets (Set of 2)
Are these FMVSS / DOT approved?
Seatbelt Planet states belts are tested and certified to FMVSS 209 and 302; the certification tag is on the belt.
Can I replace only one side?
Seatbelt Planet recommends installing a complete belt — buckle and tongue are designed to work together.
Will this fit the vehicle application shown in the title?
Match the years, make/model, and seat position in the title. Call Seatbelt Planet at 405-736-0088 if you need a custom belt.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676, or Seatbelt Planet 405-736-0088.
