Product Description

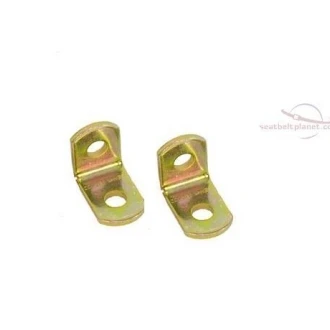

Sometimes a seat belt anchor needs to change direction by just a little to let the belt lie flat and pull straight. These Seatbelt Planet Mounting Angle Brackets are small 90-degree steel brackets that make short, solid adapters for seat belt mounting in classic and custom vehicles.
Specifications
Seatbelt Planet describes this part as a 1-inch, 90-degree seat belt mounting bracket:
- Measures 1 inch from the center hole to the short angle side
- 1.5 inches on the long side
- 0.50-inch holes
- 90-degree angle
- Steel construction
When You Need One
A short angle bracket helps when the factory mounting surface is uneven, tight or at an awkward angle, or when an anchor needs to turn so the belt pulls in a straight line. Common uses include lap belt anchors beside a transmission tunnel, buckle anchors near a console and retrofit installs in hot rods and custom interiors.
Quantity
The listing name says set of 2, and the Quantity menu offers 1, 2, 3 or 4. Contact us if you are unsure how many brackets will arrive with your selection.
Installation Tips
Use the correct grade of bolt for the anchor and a backing plate where the metal is thin. Tighten securely and check that the bracket cannot rotate into the seat track or interfere with seat movement. After installing, pull firmly on the belt in the direction it would load in a sudden stop and confirm nothing moves.
Safety Reminders
A belt is only as strong as its anchors. Never mount a bracket to thin sheet metal without reinforcement and avoid stacking brackets to make up distance. If you are adding belts where none were installed before, consider having a qualified shop do the work.
Inspect Regularly
Check brackets and bolts whenever you service your belts or work under the seats. Look for cracks, rust or loose hardware and replace anything that looks worn.
Pairing with Other Hardware
Angle brackets work alongside Seatbelt Planet's hardware kits, eye bolts and longer extension brackets. Plan the full anchor stack, including bolt, washers, bracket and backing plate, before you drill so the belt ends up where it should.
Measuring Before You Order
Hold the belt end where you want it to sit and check the angle it needs to pull. If a 90-degree turn over 1 to 1.5 inches solves the problem, this bracket is a good fit. If you need more reach, Seatbelt Planet also makes 6-inch flat, angled and double bend brackets.
Finish and Fit
Before installing, test-fit the bracket with the belt end attached and move the seat through its full range. Make sure nothing rubs on upholstery or carpet and that the belt can pivot freely at the bolt.
Seatbelt Planet Mounting Angle Brackets FAQ
What size are they?
1 inch from center hole to the short side and 1.5 inches on the long side, with 0.50-inch holes.
What angle are they?
90 degrees.
When do I need one?
When the mounting surface is uneven, tight or at an awkward angle.
Do they include bolts?
Hardware is sold separately. Ask us about the right kit.
How many can I order?
The Quantity menu offers 1 to 4.
Seatbelt Planet Mounting Angle Brackets (Set of 2) 1 specifications
- Seatbelt Planet mounting bracket / hardware accessory as titled
- Used with compatible Seatbelt Planet belts — confirm bolt size and bend style from the product page
- Follow any hardware notes packed with the part
Installation Tips — Seatbelt Planet Mounting Angle Brackets (Set of 2) 1
- Confirm this listing matches your vehicle (the vehicle application shown in the title), seat type (bench vs bucket), and buckle/retractor style before installing.
- Inspect mounting points for solid metal structure. Seatbelt Planet products are aftermarket — fabrication or adapters may be required on some vehicles.
- Use appropriate grade hardware. Some listings sell mounting hardware separately.
- Install a complete belt assembly when possible; do not mix unmatched buckle and tongue brands.
- After install, verify full extension, retraction (if applicable), and latching before driving.
- If unsure, use a professional installer. Improper installation can cause serious injury.
Selection help: Seatbelt Planet FAQ / guides at seatbeltplanet.com/faq.html · phone 405-736-0088.
Vintage Car Radio does not offer installation.
Seatbelt Planet Mounting Angle Brackets (Set of 2) 1 manuals
- Seatbelt Planet FAQ (FMVSS, warranty, returns)
- Seatbelt Planet common questions / selection help
- Use any instruction sheet packed with your order for model-specific steps
Manufacturer: Seatbelt Planet · 405-736-0088
One-Year Seatbelt Planet Warranty
Per Seatbelt Planet, seat belts are covered under a one-year manufacturer warranty for component issues from the date shipped. Warranty returns are not accepted if there has been obvious abuse, the belt was involved in an accident, or the belt has been disassembled / components removed.
Seatbelt Planet also states a 90-day satisfaction guarantee; installed returns may be subject to a restocking fee. RMA required — contact Seatbelt Planet or Vintage Car Radio at 844-802-4499 / 574-226-6676.
Vintage Car Radio does not install seat belts.
FAQ — Seatbelt Planet Mounting Angle Brackets (Set of 2) 1
Are these FMVSS / DOT approved?
Seatbelt Planet states belts are tested and certified to FMVSS 209 and 302; the certification tag is on the belt.
Can I replace only one side?
Seatbelt Planet recommends installing a complete belt — buckle and tongue are designed to work together.
Will this fit the vehicle application shown in the title?
Match the years, make/model, and seat position in the title. Call Seatbelt Planet at 405-736-0088 if you need a custom belt.
Do you install?
No.
Need help?
844-802-4499 / 574-226-6676, or Seatbelt Planet 405-736-0088.
